Chapter 3 Wiring Descripon
The wiring of external devices is as following.

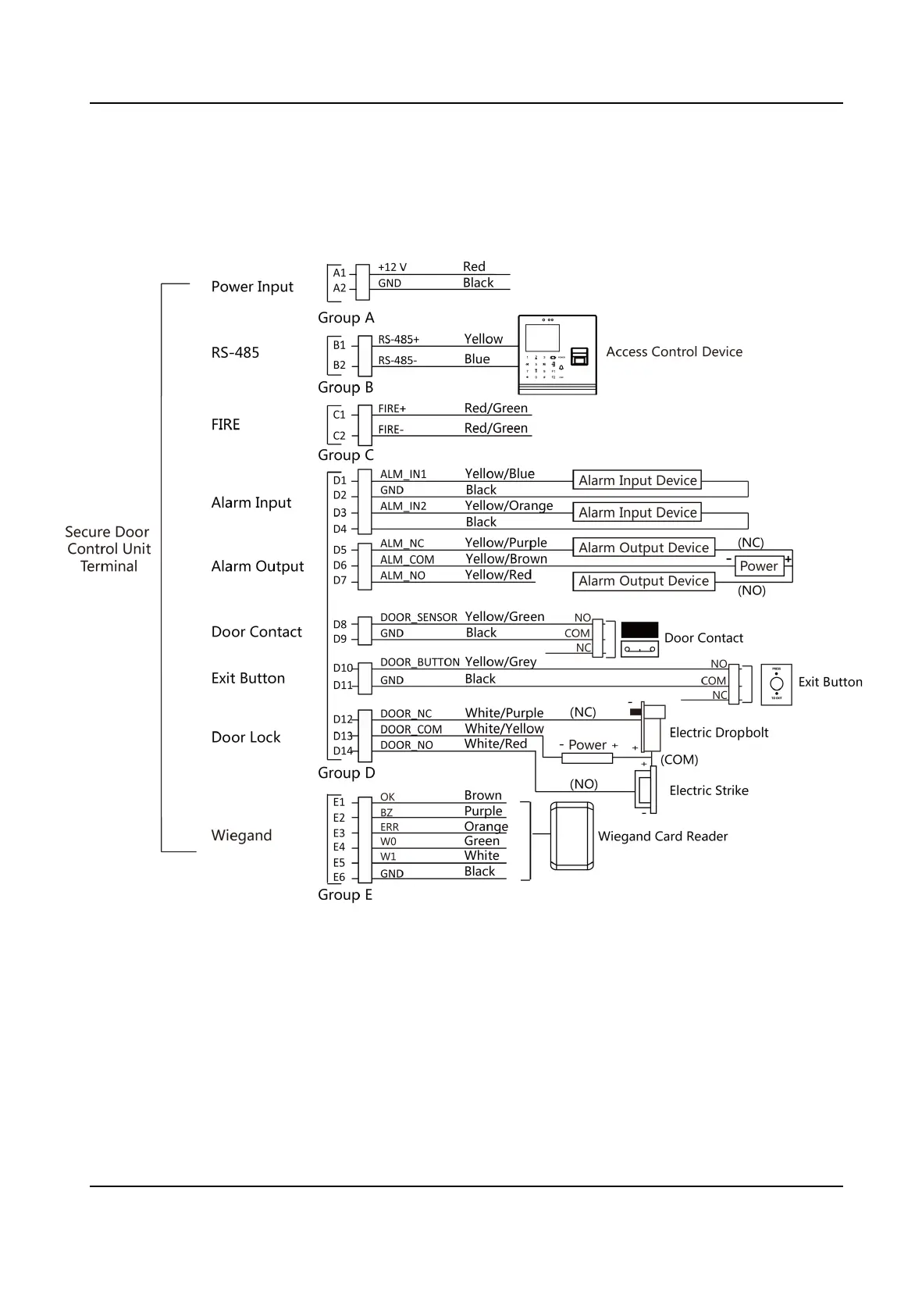

Figure 3-1 External Devices Wiring Descripon
DS-K2M061 Secure Door Control Unit User Manual
5
