HIKVISION DS-KH6310-W Quick Start Guide

Video Intercom Indoor Station·Quick Start Guide
9
Steps:
1. Chisel a hole in the wall. The size of the hole should be 76 mm (width) × 76 mm
(length) × 50 mm (depth).
2. Insert the junction box to the hole chiseled on the wall.
3. Fix the wall mounting plate to the junction box with 2 screws.
Screws
Wall Mounting
Plate
Junction Box

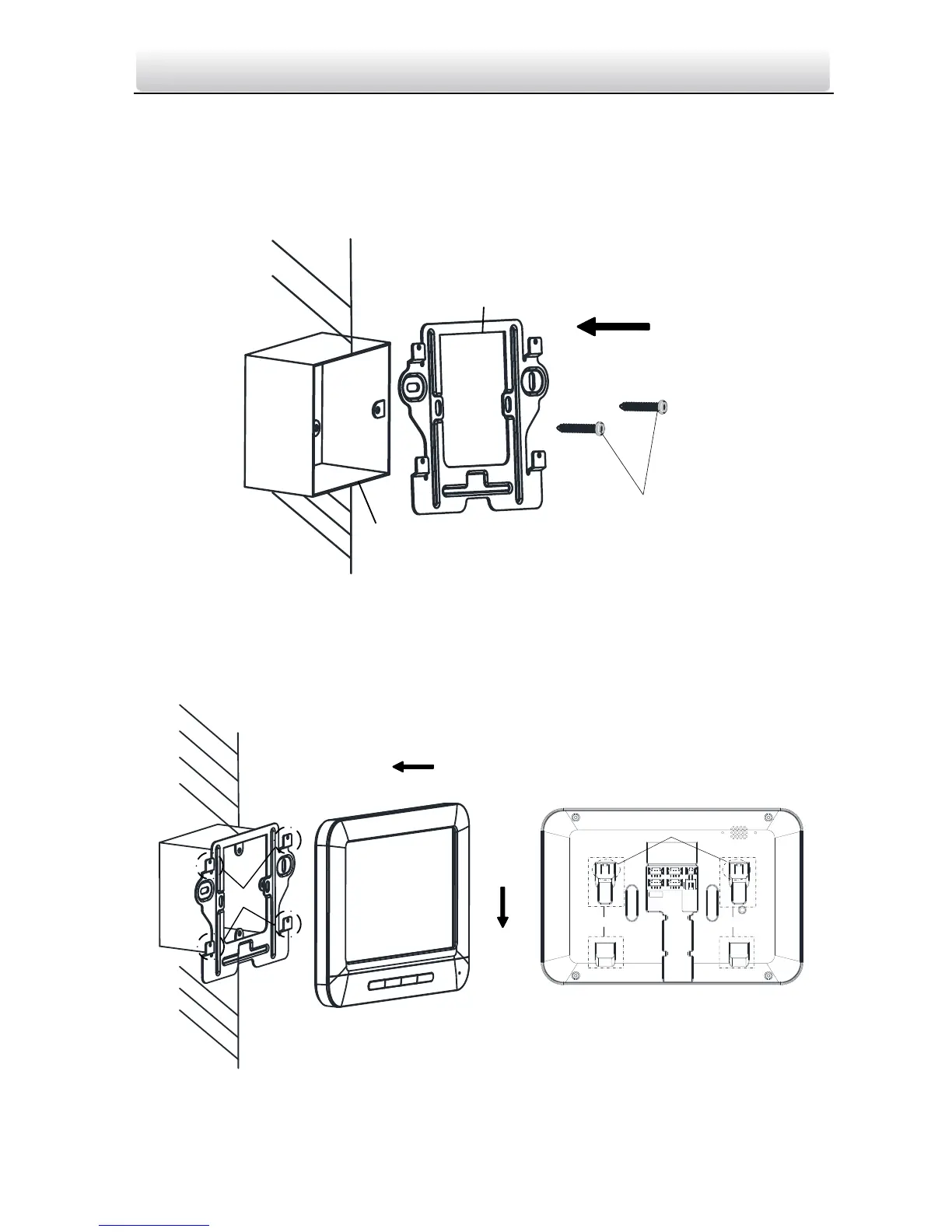

Figure 3-2 Installing the Plate
4. Hook the indoor station to the wall mounting plate tightly by inserting the plate hooks
into the slots on the rear panel of the indoor station, during which the lock catch will
be locked automatically.
Hooks
Slot Slot
Lock Catch
Figure 3-3 Hooking the Indoor Station to the Plate

HIKVISION DS-KH6310-W Specifications

General

Color	Yes
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	4 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Display diagonal	7 \
Display resolution	800 x 480 pixels
Display technology	LCD/TFT
Indoor unit power type	AC/DC
Power consumption (typical)	10 W
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C
Proper use	Indoor
Control type	Buttons, Touch
Product color	White
Operating system installed	Linux
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP

Weight and Dimensions

Depth	26 mm
Width	217 mm
Height	142 mm
