HIKVISION DS-KIS212 User Manual

Before You Start
●
Make sure the device in the package is in good condion and all the assembly parts are included.
●
Please make sure your power supply matches your indoor staon.
●
Make sure all related equipments are
power-o during the installaon.
●
Check the product
specicaon for the installaon environment.

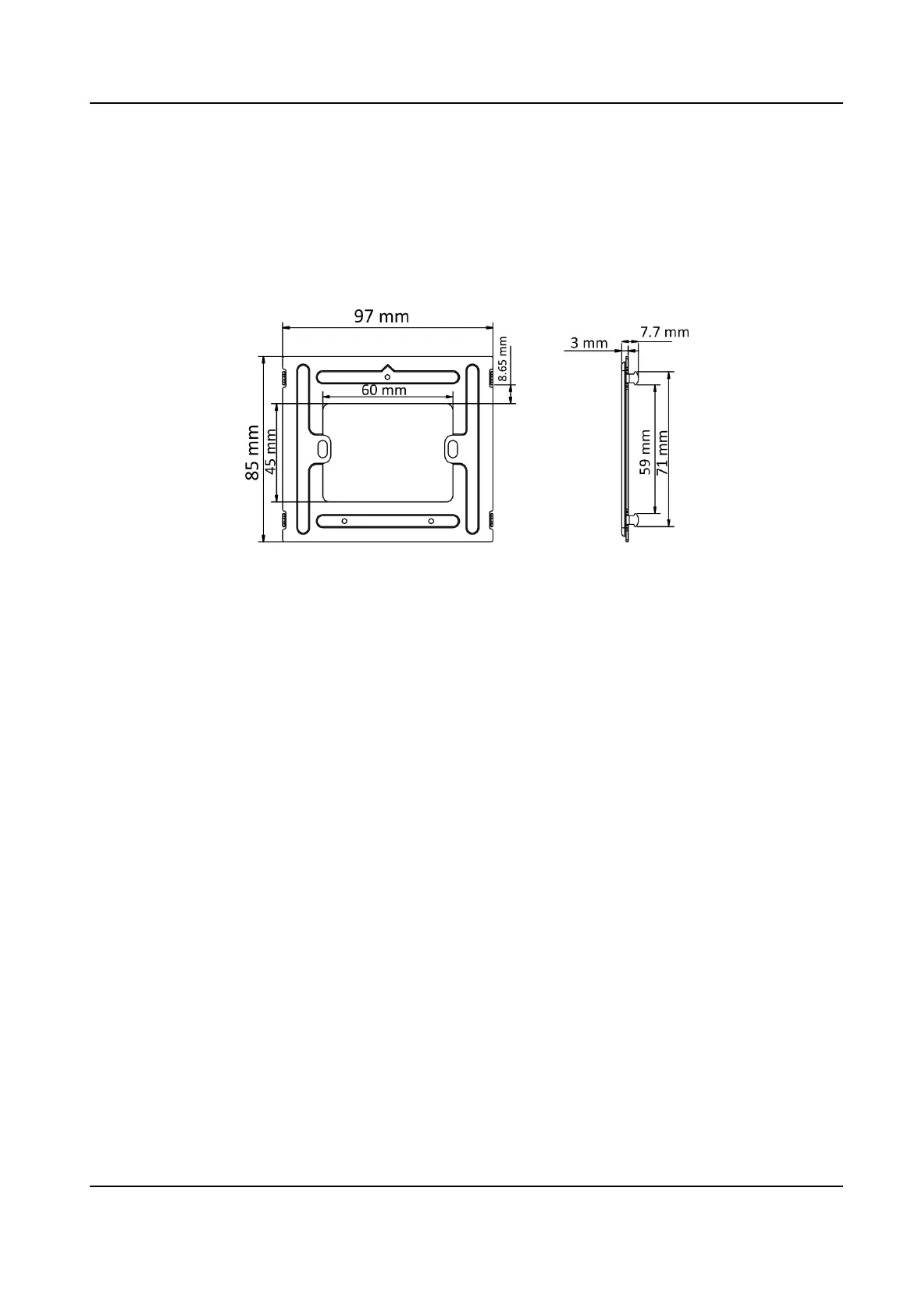

The dimension of
mounng plate is shown as below.
Figure 2-2 Mounng Plate
Steps
1.
Chisel a hole in the wall. Insert the juncon box to the hole.
2.
Fix the wall
mounng plate to the juncon box with 2 SC-KM4X25 screws.
3.
Hook the indoor staon to the wall mounng plate ghtly by inserng the plate hooks into slots
on the rear panel of the indoor
staon, during which the lock catch will be locked automacally.
DS-KIS212 Four-Wire Bundle User Manual
6
