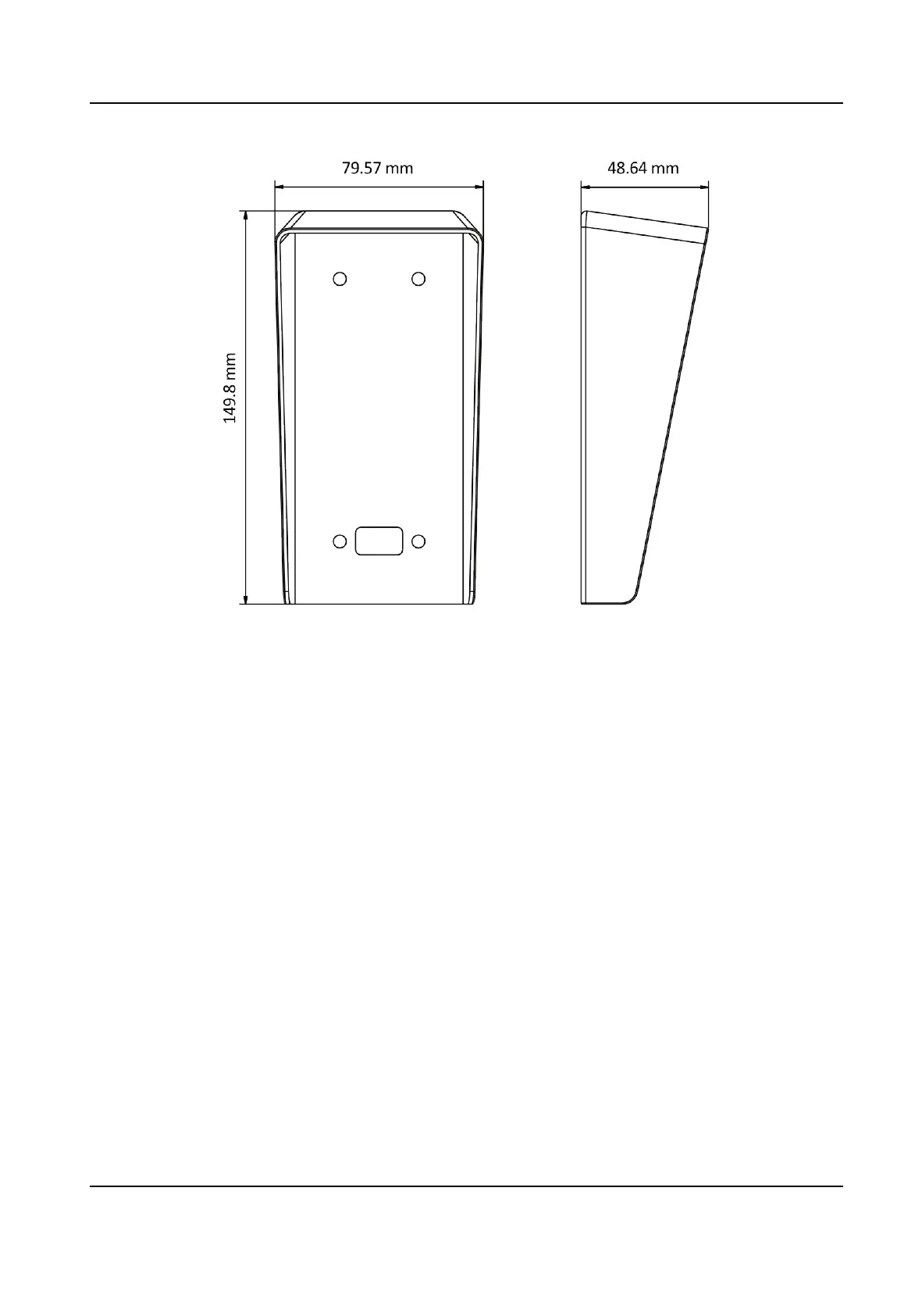

Figure 3-5 Dimension of Protecve Shield
The dimension of the protecve shield is 79.57 mm × 149.8 mm × 48.64 mm.
3.3.2 Wall
Mounng with Protecve Shield
Steps
1.
Sck the mounng template on the wall. Drill screw holes according to the mounng template.
Remove the template from the wall.
2.
Secure the
mounng plate, the silicone and the protecve shield on the wall with 4 SC-KA4X25
screws according to the screw holes.
