ECI-T24Fx Quick Start Guide
QSG ECI-T24Fx 041018NA 7
1 Appearance Description
This turret camera appearance is shown as the figures below.
1
2
3
5
4

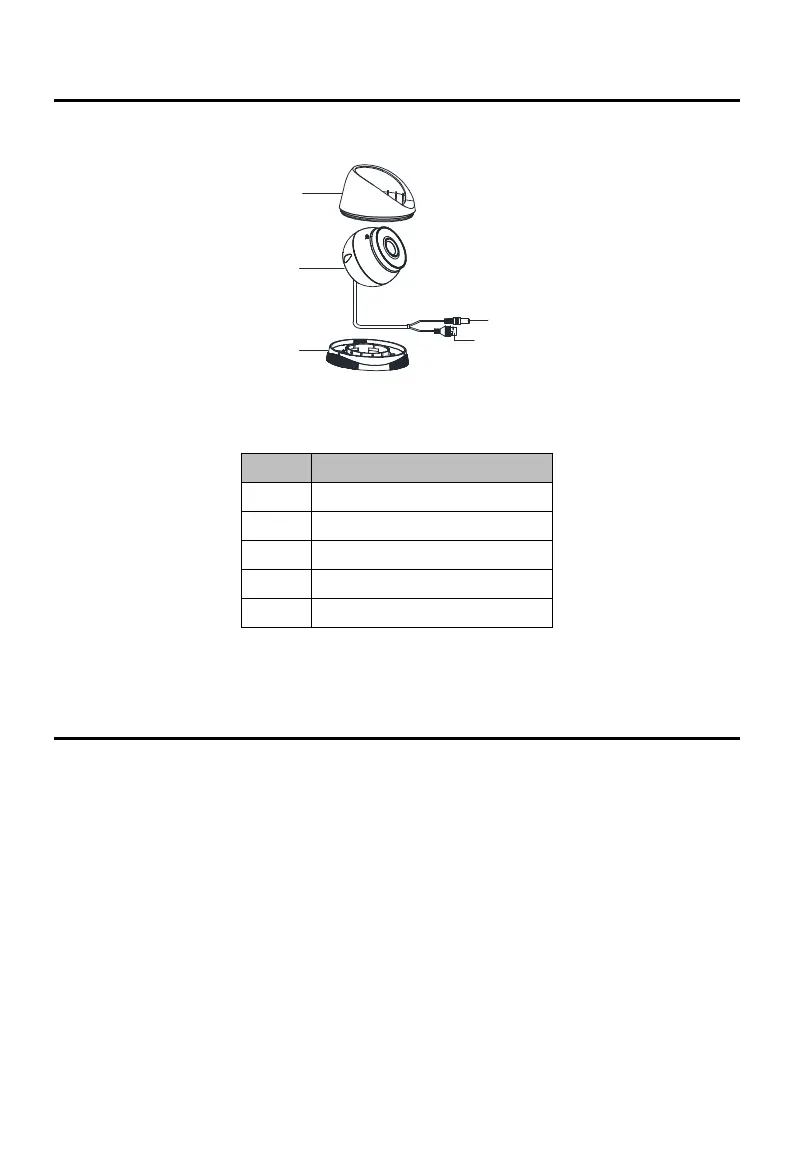

Figure 1-1
Turret Camera Overview
Type Description
Table 1-1
No. Description
1 Enclosure
2 Camera Body
3 Mounting Base
4 Power Cord
5 Network Cable
Note:
For cameras that support power over Ethernet (PoE), the power is passed along with data
on Ethernet cabling. A switch that supports the PoE function is required.
2 Installation
Make sure of the following before you start:
●
The device included in the package is in good condition and all required parts are
included.
●
The standard power supply is 12 VDC or PoE (802.3af), and must be consistent with
camera requirements.
●
Equipment is powered-off during installation.
●
The installation environment is correct.
●
The wall is strong enough to withstand four times the weight of the camera and bracket.
●
There are no reflective surfaces too close to the camera lens. The IR light from the
camera may reflect back into the lens and cause reflection.
