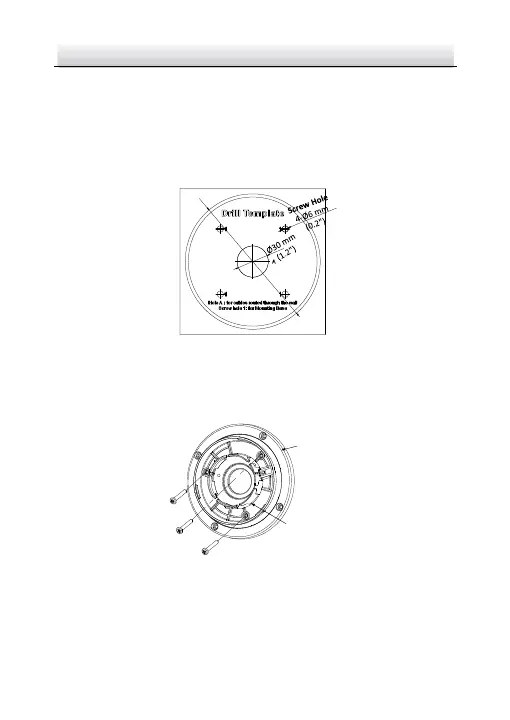

Steps:
1. Paste the drill template (supplied) to the desired mounting
position on the wall.
2. Drill the screw holes and the cable hole in the wall according to
the drill template.
Ø 130 mm (5.1")
Cable Hole
Figure 2-7 Drill Template
3. Take apart the junction box, and fix the mounting base with three
PM4 screws on the cover of junction box.
Junction Box
Cover
Mounting Base
Figure 2-8 Fix Mounting Base
4. Secure the body of junction box on the wall with four PA4 × 25
screws.
