HIKVISION HiLook IPC-T221H User Manual

Network Turret Camera·Quick Start Guide
22
Ø 130 mm (5.1")
Cable Hole

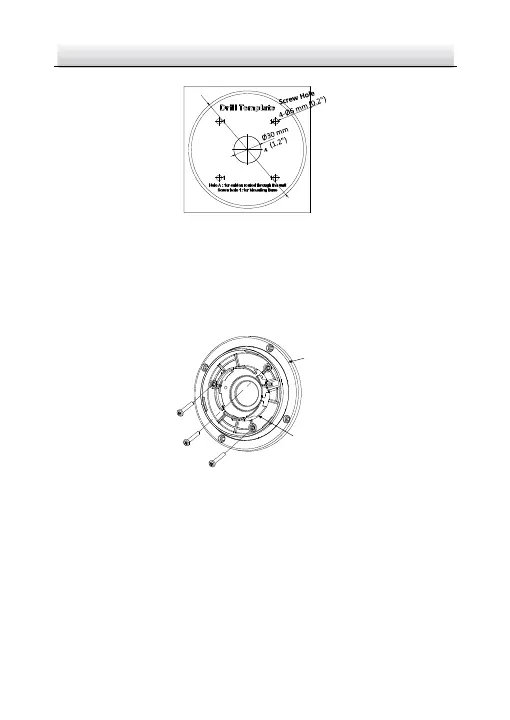

Figure 2-10 Drill Template
3. Disassemble the inclined base by the screw driver.
4. Install the mounting base of turret camera on the inclined base
cover with three PM4 screws.
Inclined Base
Cover
Mounting Base
Figure 2-11 Fix Mounting Base
5. Install the body of inclined base on the ceiling/wall with four PA4
× 25 screws.

HIKVISION HiLook IPC-T221H Specifications

General

Brand	HIKVISION
Model	HiLook IPC-T221H
Category	Security Camera
Language	English
