Digital Video Recorder Quick Start Guide

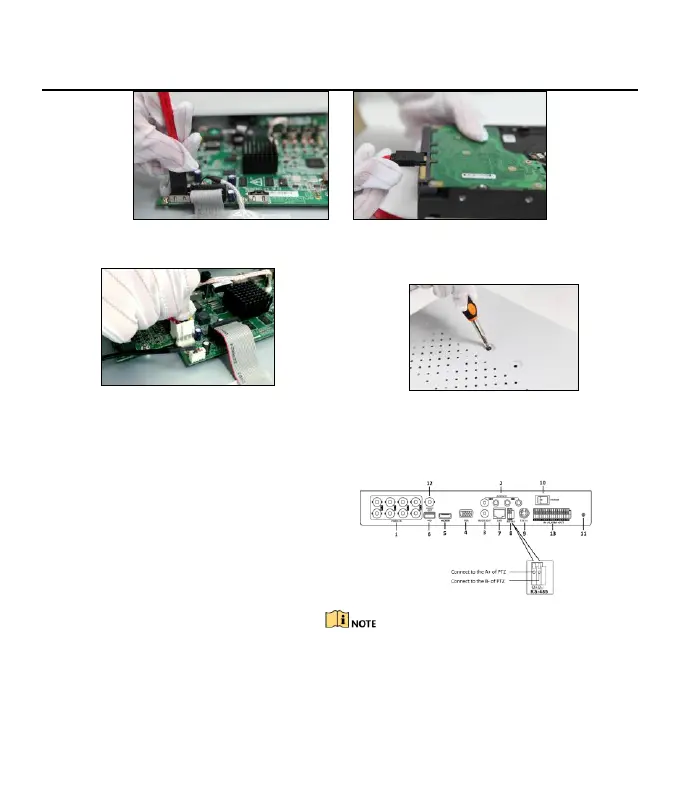

Figure 2-2 Connect Data Cable

Step 3 Connect the power cable to the HDD.

Figure 2-3 Connect Power Cable

Step 4 Place the HDD on the bottom of the

device and then fasten the screws on the

bottom to fix the HDD.

Figure 2-4 Fix Hard Disk

Step 5 Re-install the cover of the DVR and fasten screws.

2.3 RS-485 and Controller Connection

To connect PTZ to the DVR:

Step 1 Disconnect pluggable block from the

RS-485 terminal block.

Step 2 Press and hold the orange part of the

pluggable block, insert signal cables

into slots, and release the orange

part. Ensure signal cables are in tight.

Step 3 Connect A+ on PTZ to D+ on terminal

block and B- on controller to D- on

terminal block. Fasten stop screws.

Step 4 Connect pluggable block back into

terminal block.

Typical Connection:

Figure 2-5 Controller Connection A

Make sure both the controller and DVR are grounded.
