Digital Video Recorder User Manual
131

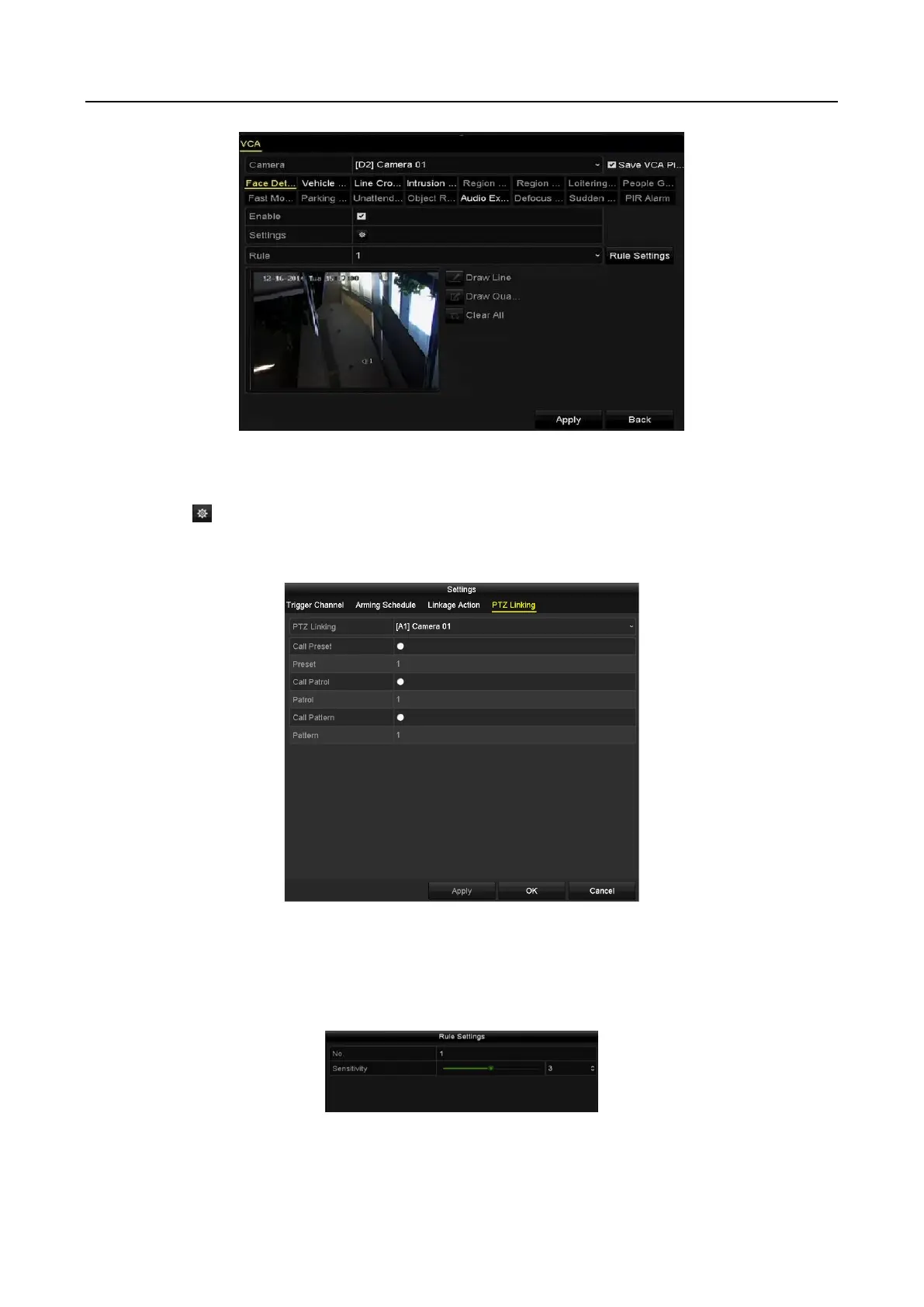

Figure 9-1 Face Detection
Step 3 Select the VCA detection type to Face Detection.
Step 4 Click to enter the face detection settings interface. Configure the trigger channel, arming
schedule, linkage action and PTZ linking for the face detection alarm. Please refer to step 3
to step 5 of Chapter 8.2 Setting Sensor Alarms for detailed instructions.
Figure 9-2 PTZ Linking
Step 5 Click the Rule Settings button to set the face detection rules. You can drag the slider to set
the detection sensitivity.
Sensitivity: Range [1-5]. The higher the value is, the more easily the face can be detected.
Figure 9-3 Set Face Detection Sensitivity
