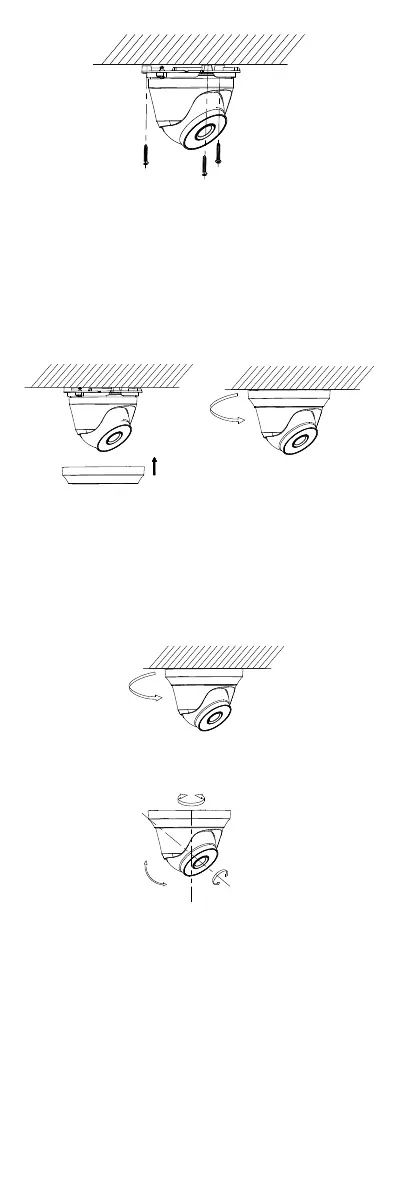

Figure 2-3 Attach the Camera to the Ceiling
Note:
The supplied screw package contains
self-tapping screws, and expansion bolts.
For cement ceiling, expansion bolts are required
to fix the camera. For wooden ceiling,
self-tapping screws are required.
4. Route the cables through the cable hole, or the side
opening.
5. Put the trim ring back, and tighten it by rotating it
clockwise.
Figure 2-4 Put the Trim Ring Back and Tighten It
6. Connect the corresponding cables, such as power
cord, and video cable.
7. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Figure 2-5 3-axis Adjustment
2.2 Installation of Type II Camera
Before you start:
Both wall mounting and ceiling mounting are suitable
for the camera. We take ceiling mounting as an example
in this section. You can take the steps of ceiling
mounting as a reference, when adopting wall mounting.
Steps:
1. Disassemble the turret camera.
1). Use the screw driver to loosen the screw on the
mounting base.
2). Take out of the camera body.
