HIKVISION HWT-B123-M

 To avoid heat accumulation, good ventilation is
required for the operating environment.
 Keep the camera away from liquid while in use for
non-water-proof device.
 While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Mark Description
Table 0-1 Mark Description
Mark
Description
DC Voltage
1 Introduction
1.1 Product Features
The main features are as follows:
 High performance CMOS sensor
 IR cut filter with auto switch
 OSD menu with configurable parameters
 Auto white balance
 Internal synchronization
 SMART IR mode
 3-axis adjustment
1.2 Overview
This manual applies to four types of cameras. The
overviews of each type are shown in the figures below.
1.2.1 Overview of Type I Camera
DC12VIN
Mounting
Base
Enclosure
Trim Ring
Main Body
Switch Button
Video Cable
Power Cord
12 VDC

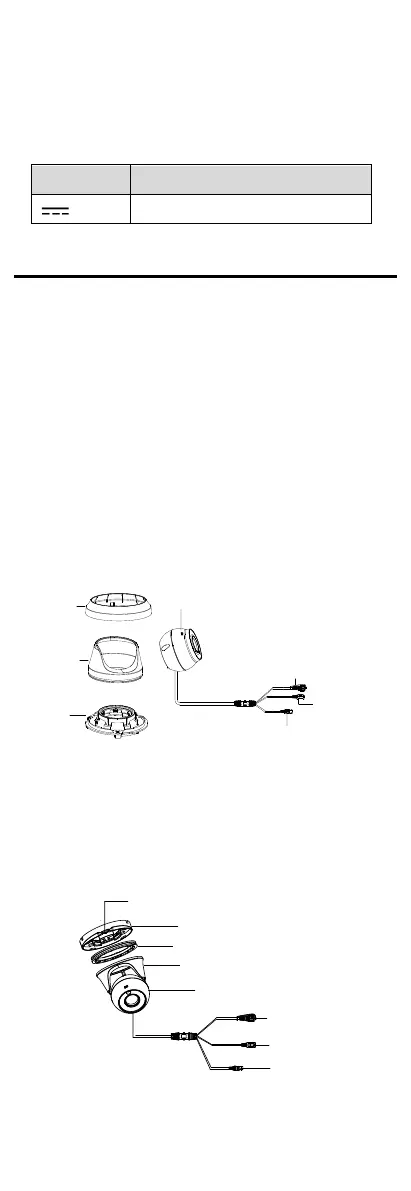

Figure 1-1 Overview of Type I Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
1.2.2 Overview of Type II Camera
DC12 VIN
Clip Plate
Mounting Base
Trim Ring
Enclosure
Main Body
Switch Button
Video Cable
Power Cord
12 VDC
Figure 1-2 Overview of Type II Camera
