HIKVISION HWT-B123-M User Manual

Digital Video Recorder User Manual
22
Rear Panel 2:

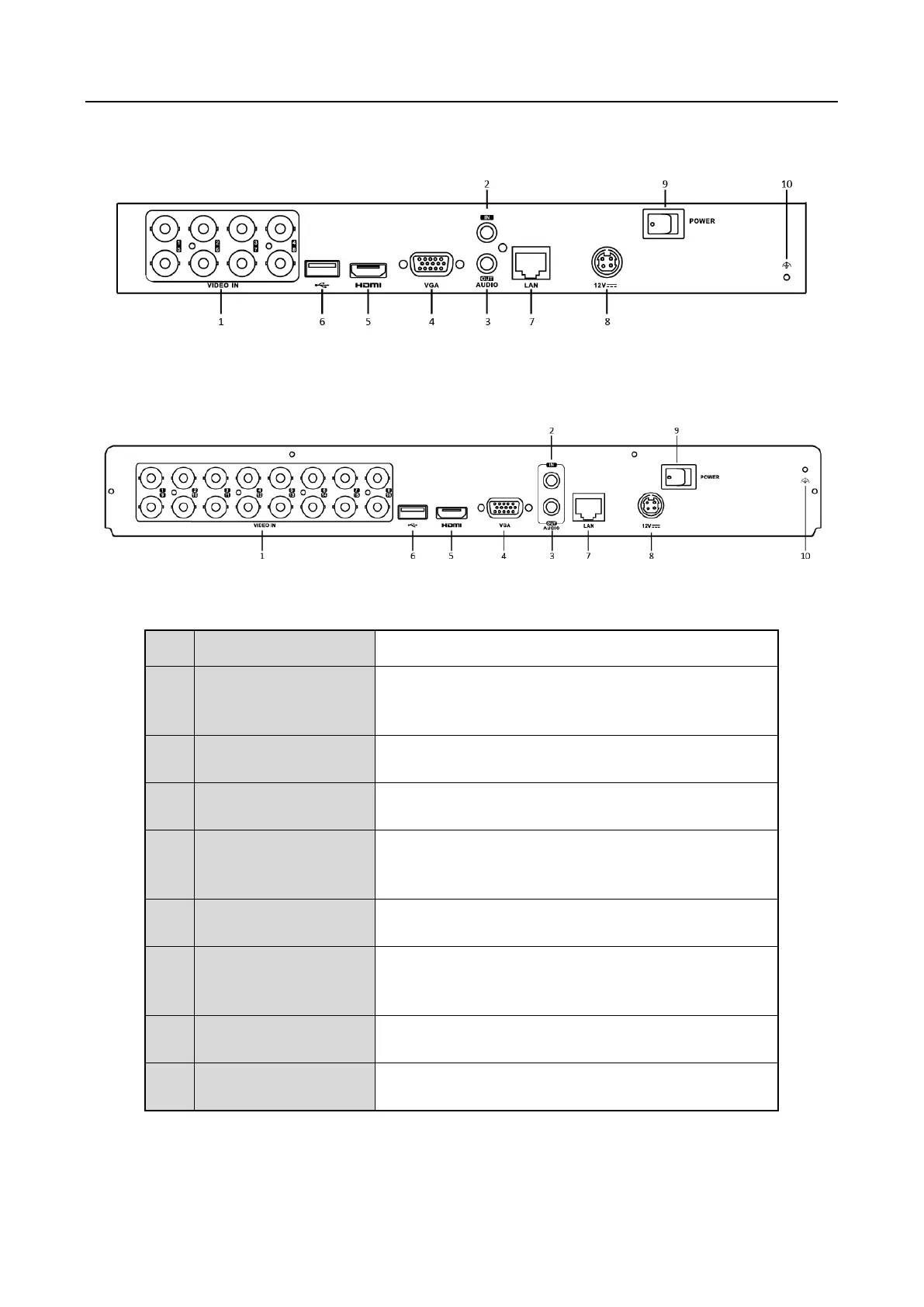

Figure 1-5 HWD-7100MH and HWD-7200MH Rear Panel
Rear Panel 3
Figure 1-6 Rear Panel of HWD-6200MH-G2 (with 16 Video Inputs)
Table 1-5 Description of Rear Panel 1-8
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video
input.
2
AUDIO IN
RCA connector
3
AUDIO OUT
RCA connector.
4
VGA
DB15 connector for VGA output. Display local
video output and menu.
5
HDMI
HDMI video output connector.
6
USB Interface
Universal Serial Bus (USB) port for additional
devices.
7
Network Interface
Connector for network
8
Power Supply
48 VDC or 12 VDC.
