Digital Video Recorder User Manual
79

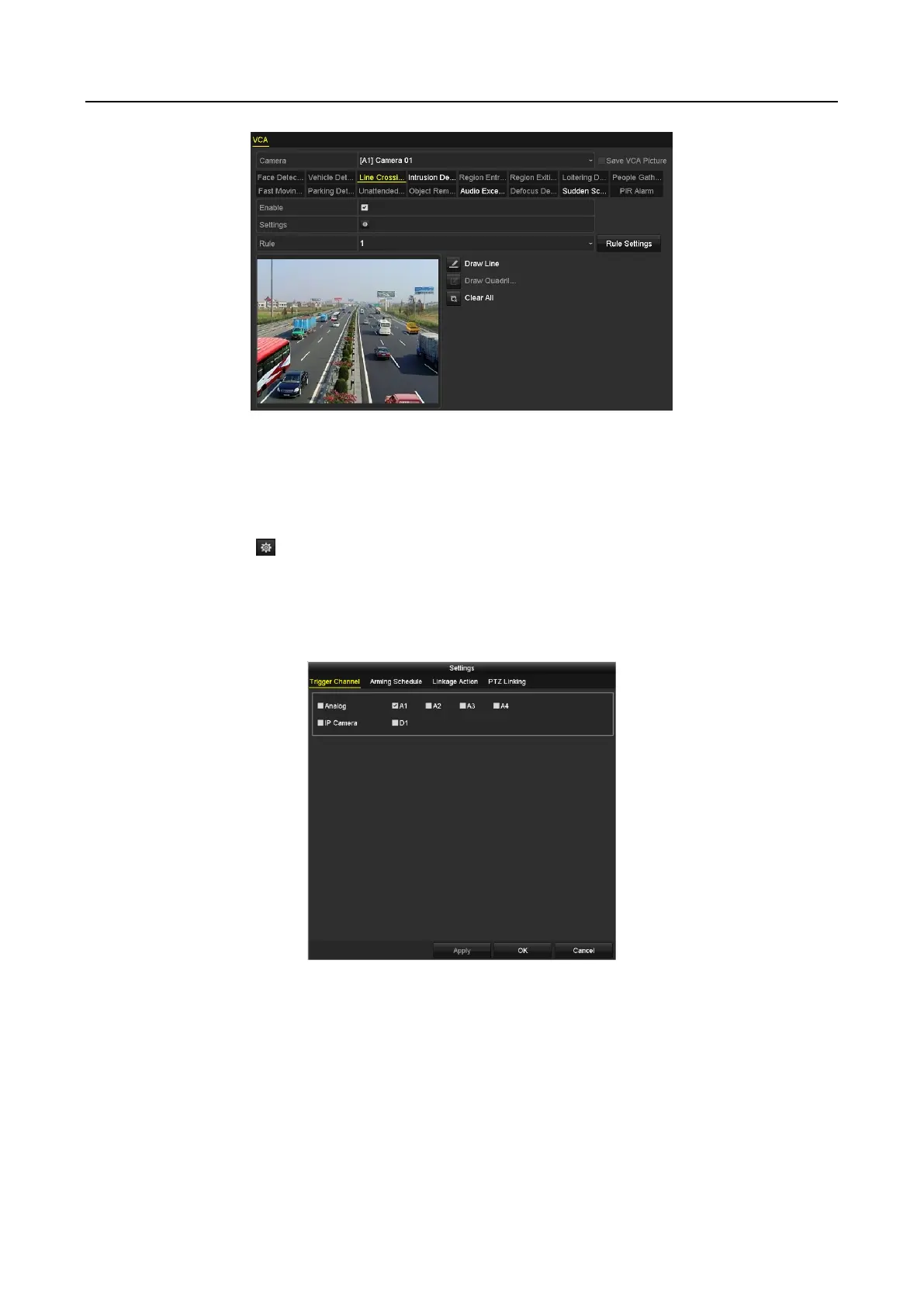

Figure 5-20 VCA Settings
Step 2 Select a Camera.
Step 3 Configure the detection rules for VCA events. For details, see the step 6 in Chapter 10.3
Line Crossing Detection.
Step 4 Click the icon to configure the alarm linkage actions for the VCA events.
Select Trigger Channel tab and select one or more channels which will start to record when
VCA alarm is triggered.
Step 5 Click Apply to save the settings.
Figure 5-21 Set Triggered Camera of VCA Alarm
Step 6 Enter Record Schedule Settings interface (Menu> Record> Schedule>Record Schedule),
and then set Event as the record type. For details, see step 2 in Chapter 5.2 Configuring
Recording and Capture Schedule.
