1.1.4 iDS-9600NXI-I16/8F(B) and iDS-9600NXI-I16/16S(B) Series

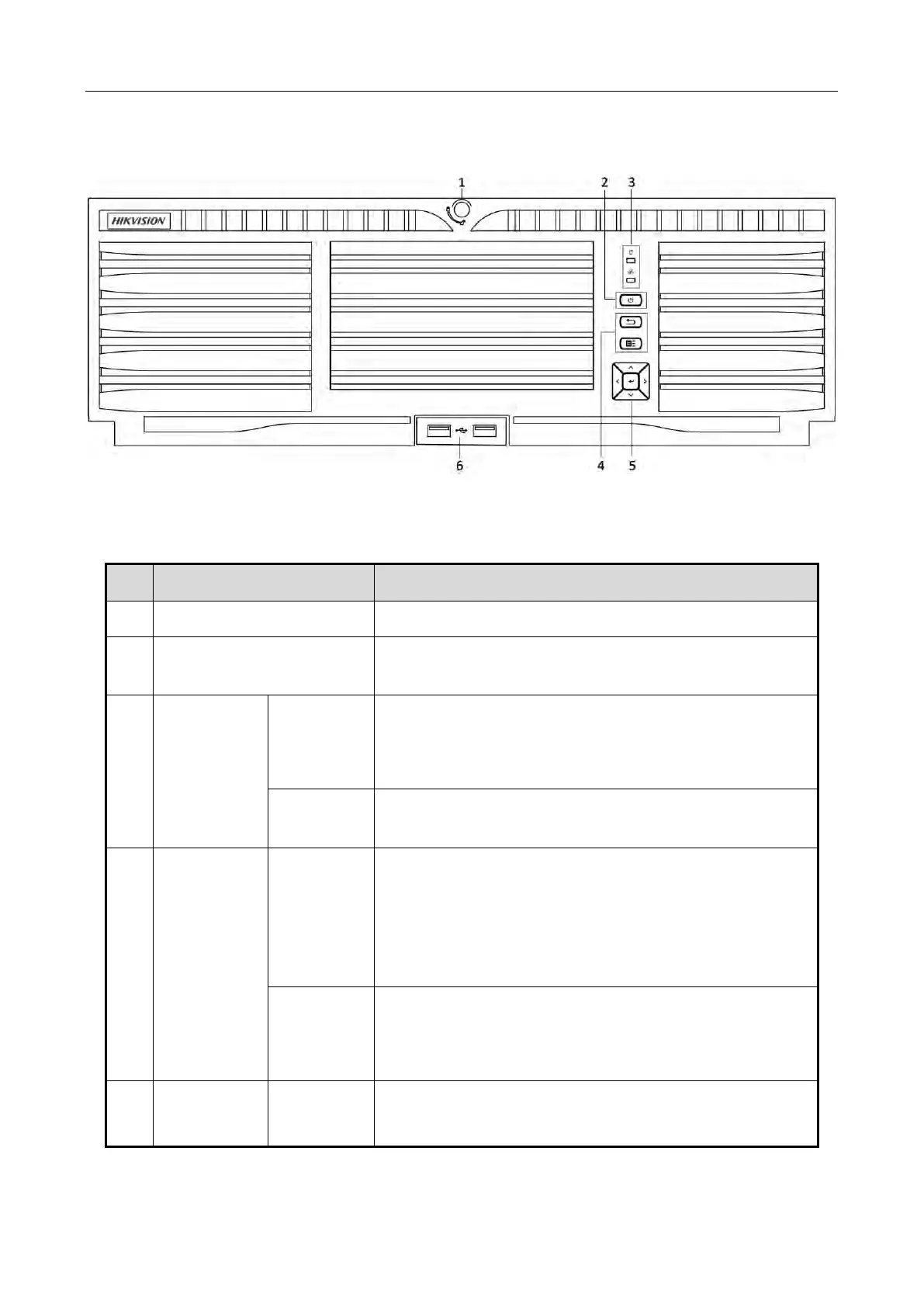

Figure 1-4 Front Panel
Table 1-4 Panel Description
No.
Name
Description
1
Panel lock
Locks or unlocks the panel by the key.
2
Power switch
Powers on/off device. Solid blue indicates device is
powered on. Solid red indicates device is shut down.
3
Status
indicator
HDD

Solid red: at least one HDD is installed

Unlit: no HDD is detected.

Blinking red: HDD is reading/writing.
Tx/Rx
Blinking blue indicates network communication is
normal.
4
Shortcut
buttons
Exit

Returns to the previous menu.

Press it twice quickly to switch the main and auxiliary
port.

In live view mode, press it to enter PTZ control
interface.
Menu

Press it to pop up main menu.

Hold it for 5 seconds to turn on/off button sound.

During playback, press it to show/hide control panel.
5
Control
buttons
ENTER

Confirms selection in any of the menu modes.

Checks the checkbox fields.
