1.1.5 iDS-7700NXI-I4/(16P)/16S(B) Series

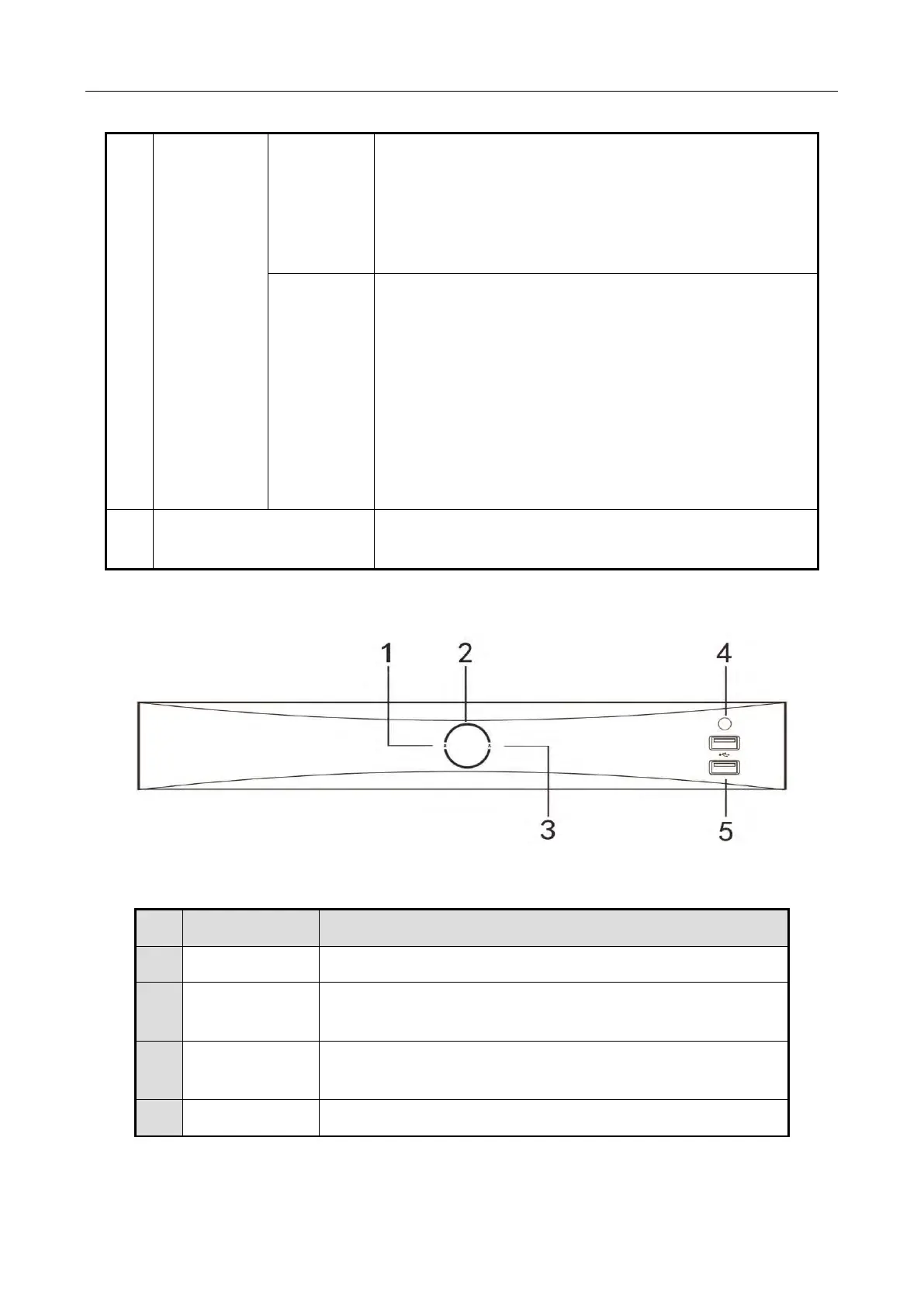

Figure 1-5 Front Panel
Table 1-5 Panel Description

Switches on/off status.

Plays or pauses the video playing in playback mode.

Advances the video by a single frame in single-frame
playback mode.

Stops/starts auto switch in auto-switch mode.
DIRECTION

Navigates between different fields and items in
menus.

In the playback mode, use the Up and Down buttons
to speed up and slow down recorded video. Use the
Left and Right buttons to select the next and previous
video files.

Cycles through channels in live view mode.

Controls the movement of the PTZ camera in PTZ
control mode.
6
USB interfaces
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
No.
Name
Function Description
1
HDD
Blinking white: HDD is reading/writing.
2
POWER
Turns white when the power is connected and the system
is running.
3
Tx/Rx
Flickers white when network connection is functioning
properly.
4
IR Receiver
Receiver for IR remote .
