You need to purchase a junction box in advance.
Steps:
1. Loosen screws to take apart the junction box.
2. Paste the drill template for junction box to the place
where you want to install the camera.
3. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.

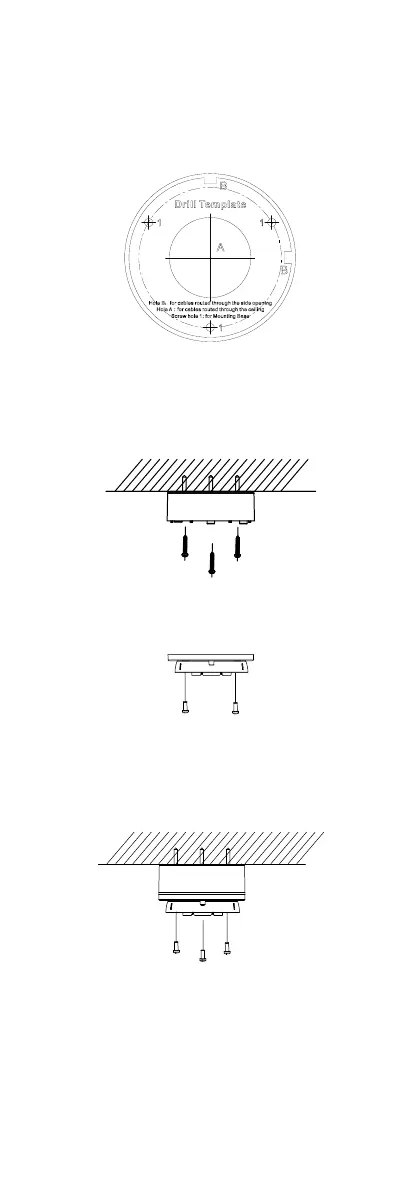

Figure 2-7 Drill Template for Junction Box
4. (Optional) Drill the cable hole, when the cables are
routed through the ceiling.
5. Secure the junction box body on the ceiling with
three PA4 × 25 screws that come with the junction
box.
Figure 2-8 Secure the Junction Box Body
6. Fix the mounting base onto the junction box cover
with two M4 × 10 screws.
Figure 2-9 Fix the Mounting Base
7. Route the cables through the bottom cable hole or
the side cable hole of the junction box.
8. Combine the junction box cover with its body and
secure it with three M3 screws.
Figure 2-10 Combine the Junction Box Cover and Body
9. Connect the power cord and video cable and put
the cables back into the junction box.
10. Refer to step 9 of 2.1.1 Ceiling Mounting Without
Junction Box to adjust the angle and finish the
installation.
2.1.3 Wall Mounting
Before you start:
You need to purchase a wall mount in advance.
To Next Page
