HIKVISION THC-T129-P User Manual

Steps:
1. Drill Φ 10 mm screw holes in the wall where you
want to install the wall mount.
2. Use four M6 expansion bolts to fix the wall mount
onto the wall.
Figure 2-11 Fix the Wall Mount
3. Refer to steps 1 and 2 of 2.1.1 Ceiling Mounting
Without Junction Box to dissemble the camera.
4. Use two M4 screws to fix the mounting base onto
the wall mount.

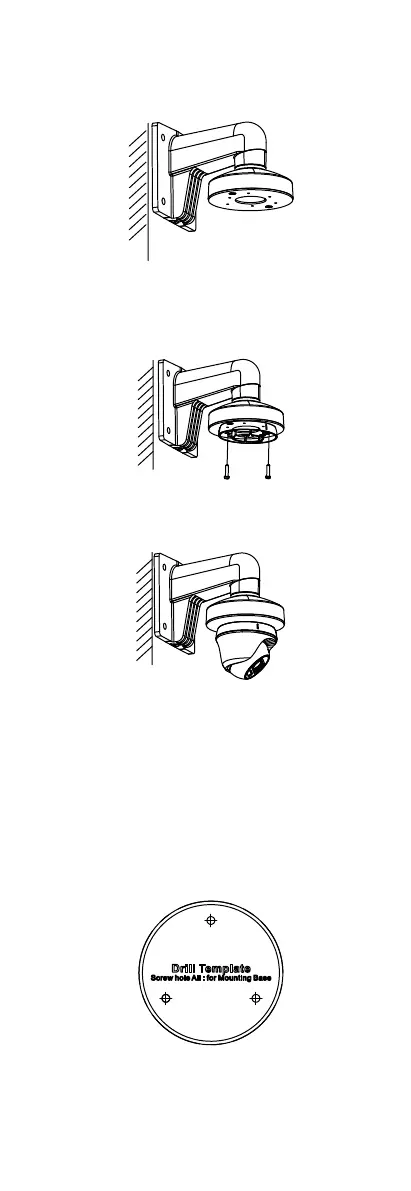

Figure 2-12 Fix the Mounting Base onto the Wall Mount
5. Refer to steps 7 to 9 of 2.1.1 Ceiling Mounting
Without Junction Box to finish the installation.
Figure 2-13 Finish the Installation
2.2 Installation of Type II Camera
2.2.1 Ceiling Mounting without Junction Box
Steps:
6. Paste the drill template (supplied) to the place
where you want to install the camera.
7. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Figure 2-14 Drill Template
8. Loosen the screw and pull out the clip plate to
dissemble the camera.
