HIKVISION TURBO HD D3T Series - Page 5

1 Introduction
1.1 Product Features
The main features are as follows:
 High performance CMOS sensor
 IR cut filter with auto switch
 OSD menu with configurable parameters
 Auto white balance
 Internal synchronization
 SMART IR mode
 4 in 1 video output (TVI/AHD/CVI/CVBS)
 3-axis adjustment
1.2 Overview
1.2.1 Type I Camera
DC12 VIN
Switch
Button
Power
Cord
Video
Cable
Lens
Main Body
Bracket

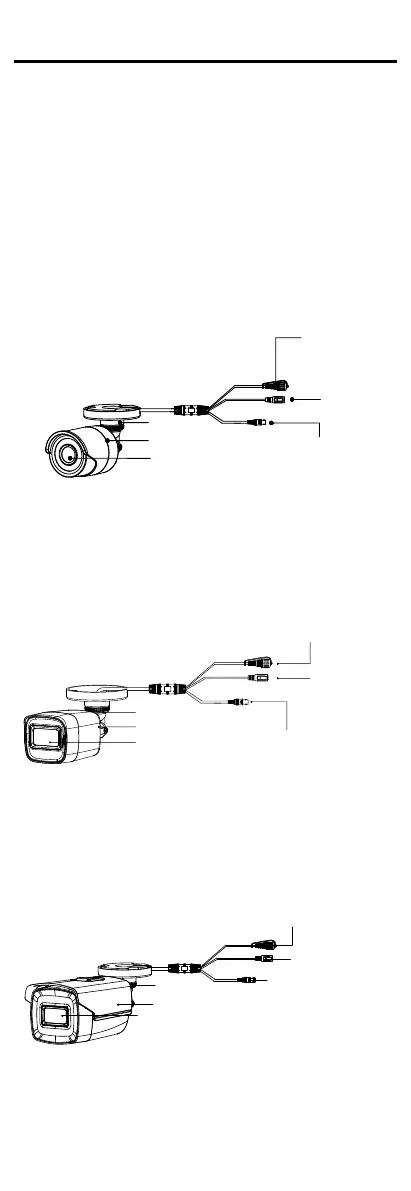

Figure 1-1 Overview of Type I Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
1.2.2 Type II Camera
DC12VIN
Video Cable
Switch Button
Power
Cord
Bracket
Main Body
Lens
Figure 1-2 Overview of Type II Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
1.2.3 Type III Camera
DC12VIN
Switch Button
Power Cord
Video Cable
Bracket
Main Body
Lens
Figure 1-3 Overview of Type III Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
