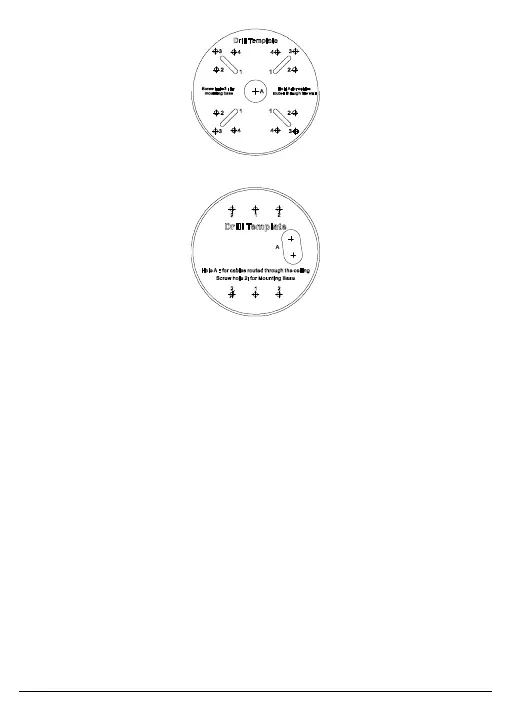

Figure 6, Type I Camera Drill Template
Figure 7, Type II Camera Drill Template
3. Loosen the screws on the dome camera bubble to remove the
bubble and black liner.
4. Attach the of type I camera back box/type II camera base plate
to the ceiling and secure with supplied screws.
