UM DS-2CCx2D9T-xxxx 022520NA (UD02874B-A) 23

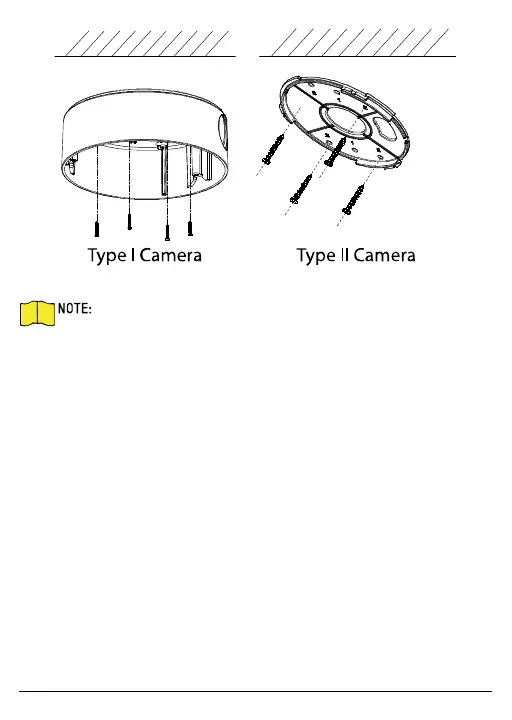

Figure 8, Attach the Back Box/Base Plate
The supplied screw package contains both self-tapping
screws and expansion bolts.
If the wall is concrete, expansion bolts are required to fix
the camera. If the wall is wood, self-tapping screws are
required.
5. Route the cables through the cable hole or the side opening.
6. Align the camera with the back box/base plate, and tighten the
screws to secure the camera with the back box/base plate.
