PLUMBING
All of the plumbing components are
attached to the case at the factory so there
is no assembly required. The case drain is
located front and center of the cases for
convenient access and is specially molded
out of ABS material. The “P” trap, furnished
with the case, is molded of PVC. Should any
future maintenance issues arise care should
be given to assure that all connections are
water tight and sealed with the appropriate
PVC or ABS cement.

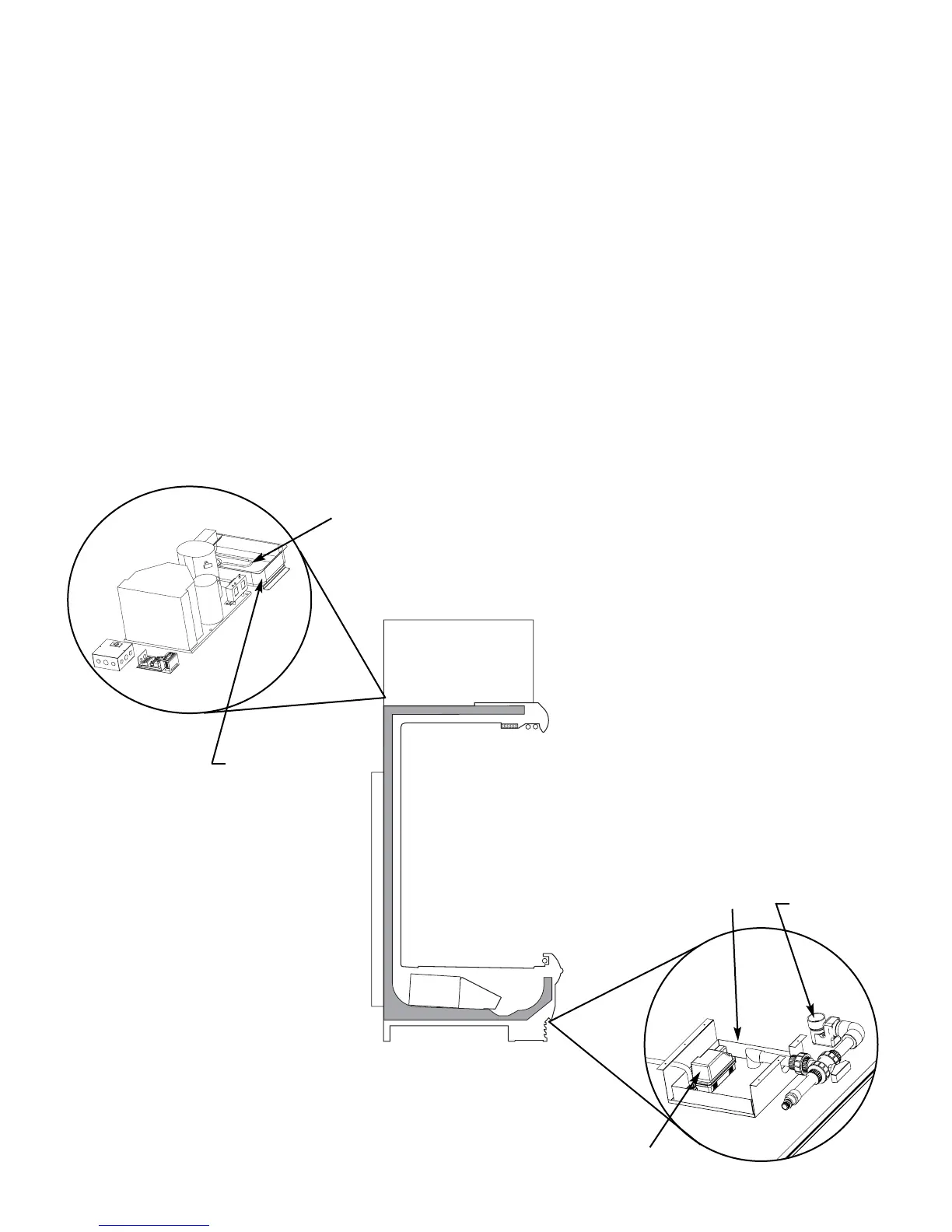

The case run-off is channeled to a
drain pan located underneath the case as
shown below. The water is then pumped up
to an evaporative drain pan on top of the
case where an electric heater evaporates the
run-off. When cleaning the case be sure not
to introduce water faster than the drain pump
can carry it away.
MODEL
O5DMA
CASE DRAIN
DRAIN PAN
DRAIN PUMP
EVAPORATIVE
DRAIN PAN
HEATERS
