ELECTRICAL HOOKUP
The drain pump is plugged into a
receptacle mounted under the case, as
shown below. The receptacle is intended for
use with the drain pump only
and not as a
power supply for peripheral equipment.
FIELD CONNECTION
JUNCTION BOX
DRAIN PUMP
RECEPTACLE
DANGER
Electrical Shock Hazard
Always disconnect power to case
when servicing or cleaning.
HIGH
PRESSURE
CONTROL
MODULE

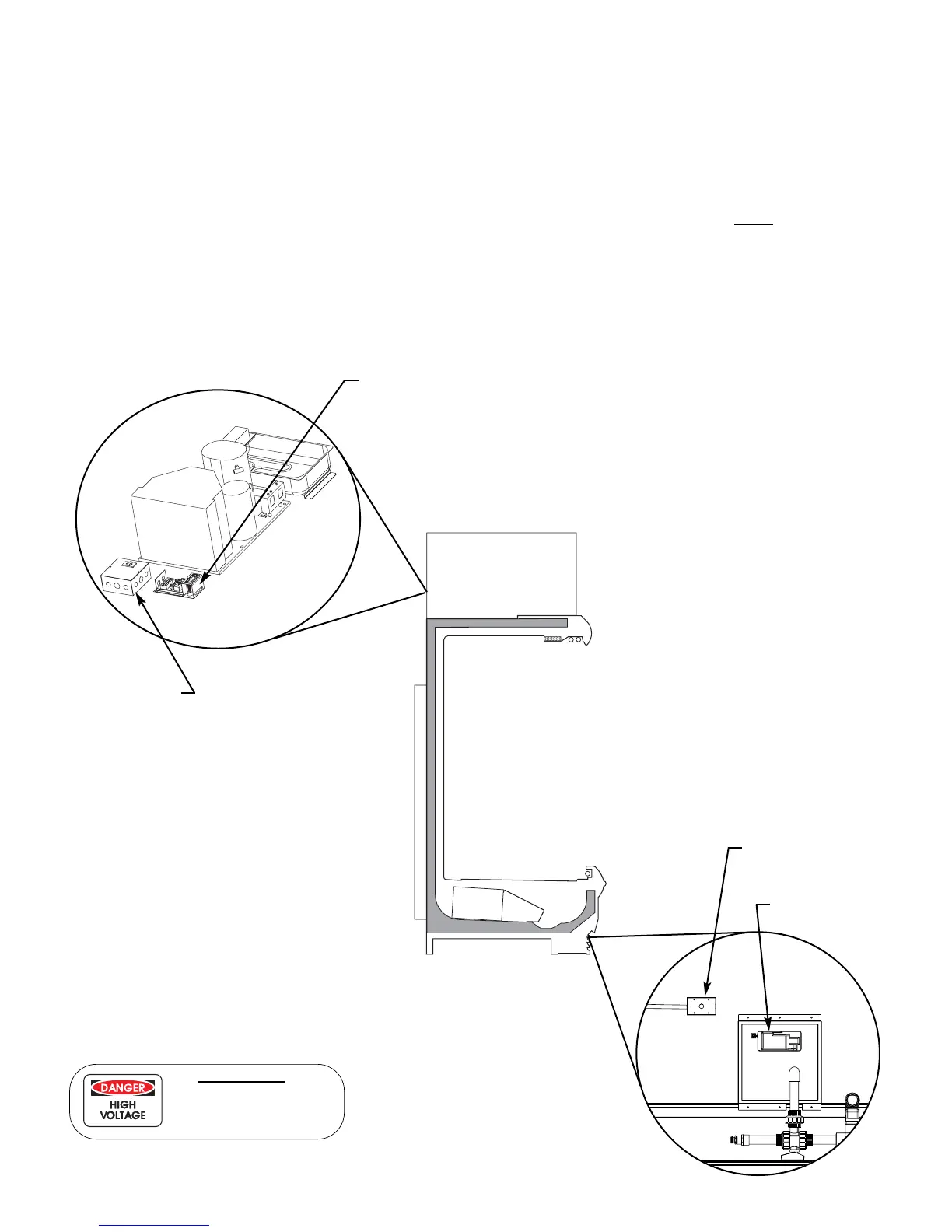

Electrical connections for the O5DMA
are made in the field connection junction box
located at the top left rear of the case, see dia-
gram below.
