Chapter 1 Introduction | Hillstone
Hillstone SG-6000 E-Series Hardware Reference Guide
Table 1-1: SG-6000-E6360 Front Panel Description
No.
Label
No.
Label
No.
Label
1
PWR: Power LED
7
FAN: Fan LED
13
HA: HA port
2
STA: Status LED
8
CLR: CLR button
14
e0/0 - e0/1: Gigabit
Ethernet ports
3
ALM: Alarm LED
9
CON: Console
port
15
XLe0/2-XLe0/3:
QSFP+ ports
4
HA: HA status
LED
10
AUX: Auxiliary
port
16
Bypass expansion slot
5
PS0: Power
supply PS0 LED
11
USB: USB port
17
Xe0/4-Xe0/11: SFP+
ports
6
PS1: Power
supply PS1 LED
12
MGT:
Management port
18
Fan tray
The front panel of SG-6000-E6168 and SG-6000-E6160 consists of 2 Gigabit
Ethernet ports, 8 SFP+ ports, 1 USB port, 1 HA port, 1 Management port, 1 Console
port, 1 Auxiliary port, 1 CLR button, 1 Bypass expansion slot and several LED
indicators.

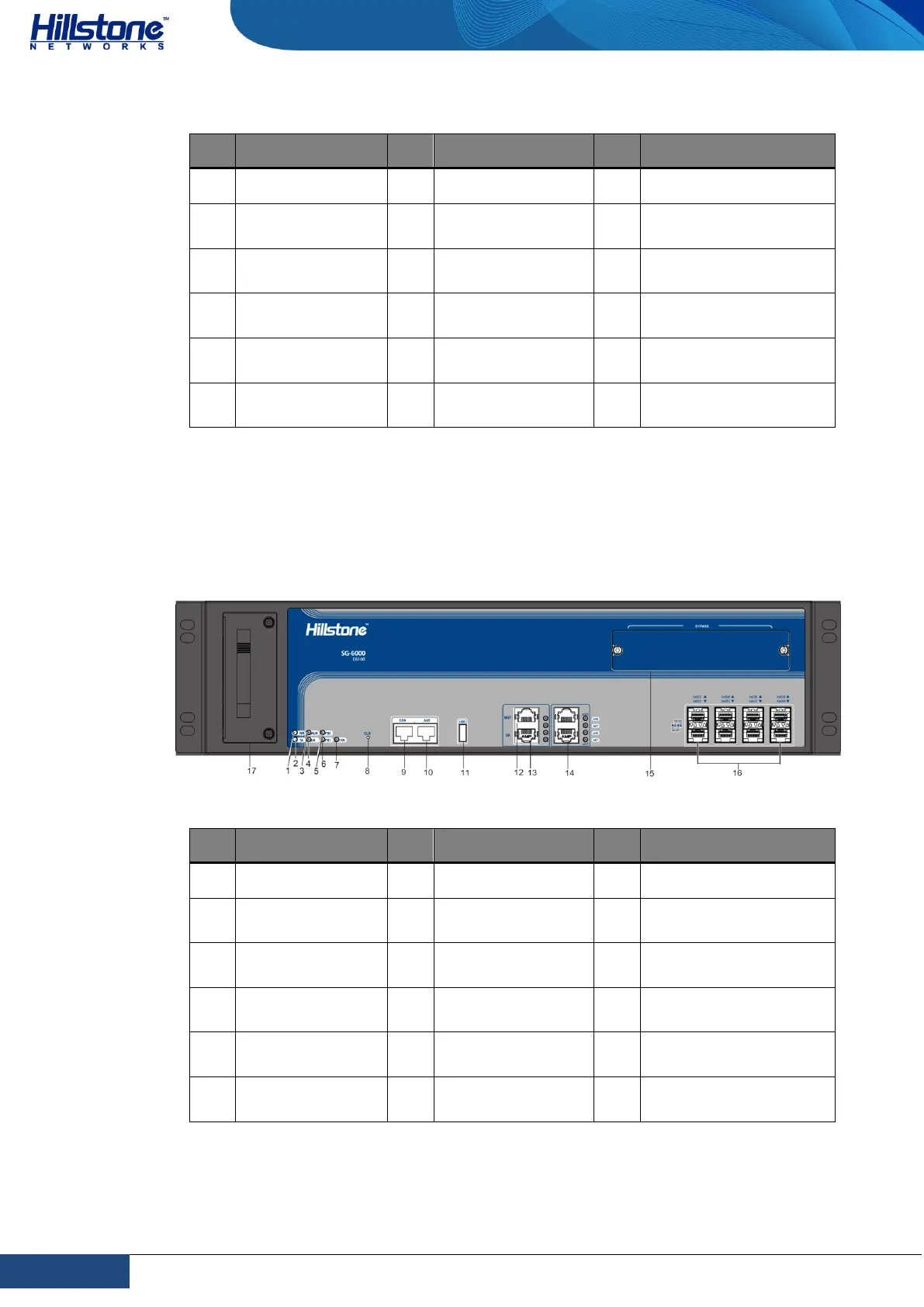

Figure 1-2: SG-6000-E6160 Front Panel
Table 1-2: SG-6000-E6160 Front Panel Description
No.
Label
No.
Label
No.
Label
1
PWR: Power LED
7
FAN: Fan LED
13
HA: HA port
2
STA: Status LED
8
CLR: CLR button
14
e0/0 - e0/1: Gigabit
Ethernet ports
3
ALM: Alarm LED
9
CON: Console
port
15
Bypass expansion slot
4
HA: HA status
LED
10
AUX: Auxiliary
port
16
Xe0/2-Xe0/9: SFP+
ports
5
PS0: Power
supply PS0 LED
11
USB: USB port
17
Fan tray
6
PS1: Power
supply PS1 LED
12
MGT:
Management port
18
