Hillyard TRIDENT B20SC - Technical Description

5
On consignment of the machine
When the machine is consigned to the customer, an immediate check
must be performed to ensure all the material mentioned in the shipping
documents has been received, and also to check the machine has not
suffered damage during transportation. If this is the case, the carrier must
ascertain the extent of the damage at once, informing our customer
service office. It is only by prompt action of this type that the missing
material can be obtained, and compensation for damage successfully
claimed.
Intended use
The floor scrubbing machine is designed exclusively for the professional
cleaning of surfaces and floors in industrial, commercial and public
environments. The machine is only suitable for use in closed - or at least
covered - locations.
The machine is not suitable for use in the rain, or under water jets. It is
FORBIDDEN to use the machine for picking up dangerous dusts or
inflammable liquids within places with a potentially explosive atmosphere.
In addition, it is not suitable as a means of transport for people or objects.
Introductory comment
The TRIDENT B20SC is a floor scrubbing machine which, by means of
the mechanical action of the rotating brush and the chemical action of a
water/detergent solution, can clean any type of flooring. As it advances, it
also collects any removed dirt as well as the detergent solution not
absorbed by the floor.
The machine must only be used for this purpose. Even the best
machines will only work well if used correctly and kept in good working
order. We therefore suggest you read this instruction booklet carefully
and read it again whenever difficulties arise while using the machine. If
necessary, remember that our customer assistance service (organised in
collaboration with our dealers) is always available for advice or direct
intervention.

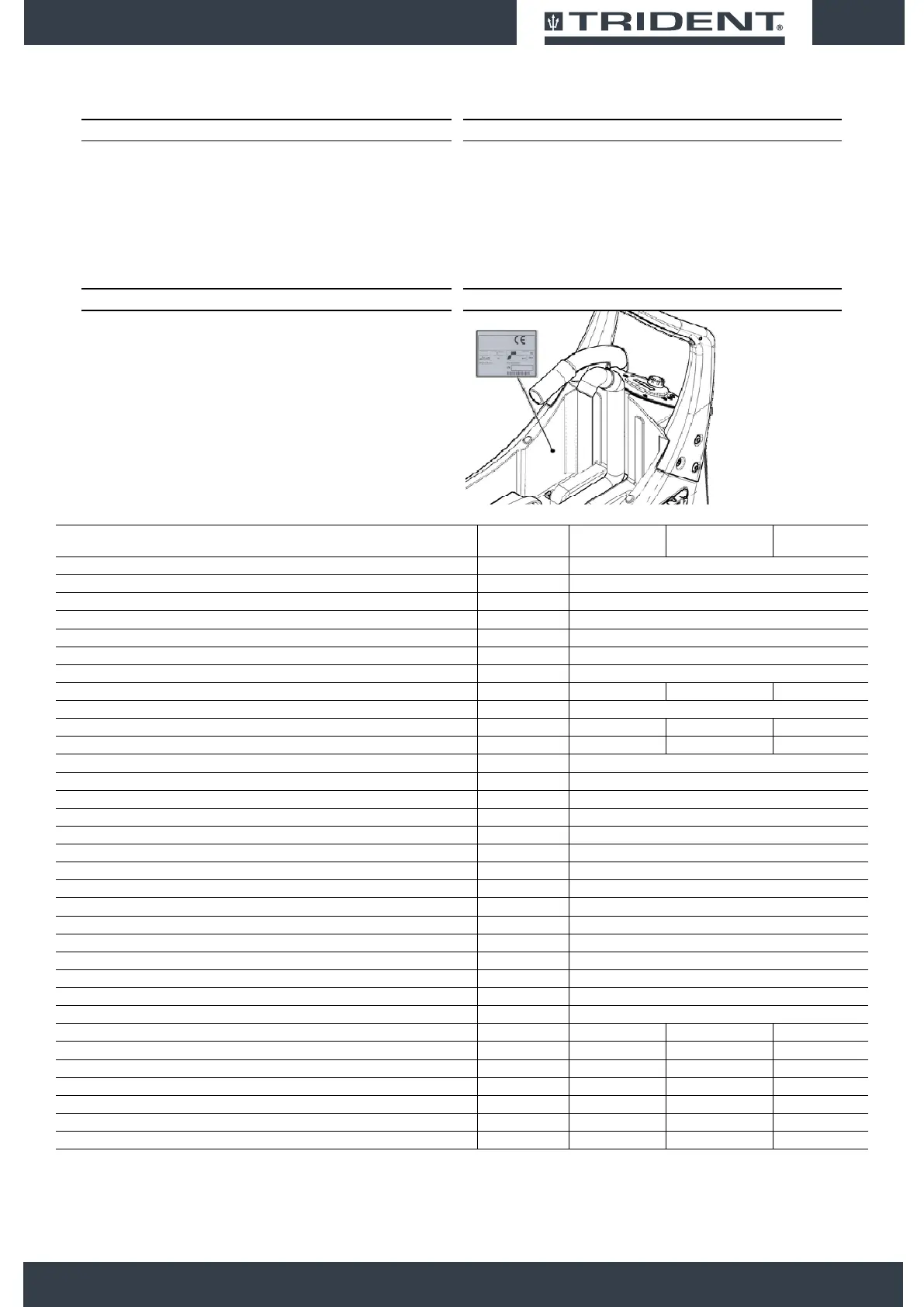

Serial number plate
TECHNICAL DESCRIPTION UM 50B 50BT
TRIDENT
B20SC
Working width in 20
Squeegee width In 27,75
Working capacity, up to ft
2
/h 21.872,25
Disc brush No. / Øin
1 / 20
Disc brush rotations rpm 166
Brush motor V/W 24 / 500
Maximum pressure on the brush lb 55,12
Traction motor V/W
- 24 / 150 -
Traction wheel (number / diameter / width) No. / ( in / in)
2 / (8,86 / 2,52)
Maximum forward speed in transport mode mph - 2,5 -
Maximum forward speed in working mode mph - 2,4 -
Maximum gradient with full load % 2
Vacuum motor No./(V/W) 1 / (24 / 424)
Suction vacuum psi 1,57
Rear wheel (number / diameter / width)  in / in 1 / 3,15 / 0,9
Solution tank gal 11
Recovery tank gal 10
Steering diameter in 33,5
Machine length in 46,5
Machine length (with splash guard kit) in 47,25
Machine height in 40,5
Machine width (without squeegee)
in 22,4
Machine width (without squeegee + optional splash guard kit)
in 23
Battery compartment (l x w x h) in 13,9x13,1x9,8
Rated battery voltage Nr / V / Ah 2 / 12 / 77
Battery weight (calculated with 12 V 77Ah battery) lb 59
Machine weight (machine + brush + squeegee)
lb 152 152 152
Machine weight in transport (machine + batteries + brush + squeegee)
lb 269 122 269
Machine weight in running order (machine + batteries + water + brush + squeegee)
lb 284 375 284
Sound pressure level (ISO 11201) - L
pa
dB(A) 52,9 52,9 52,9
Uncertainty K
pa
dB(A) 1,5 1,5 1,5
Hand vibration level (ISO 5349)
m/s
2
0,663 0,663 0,663
Uncertainty of measurement of vibrations
6% 6% 6%
