1. Product information

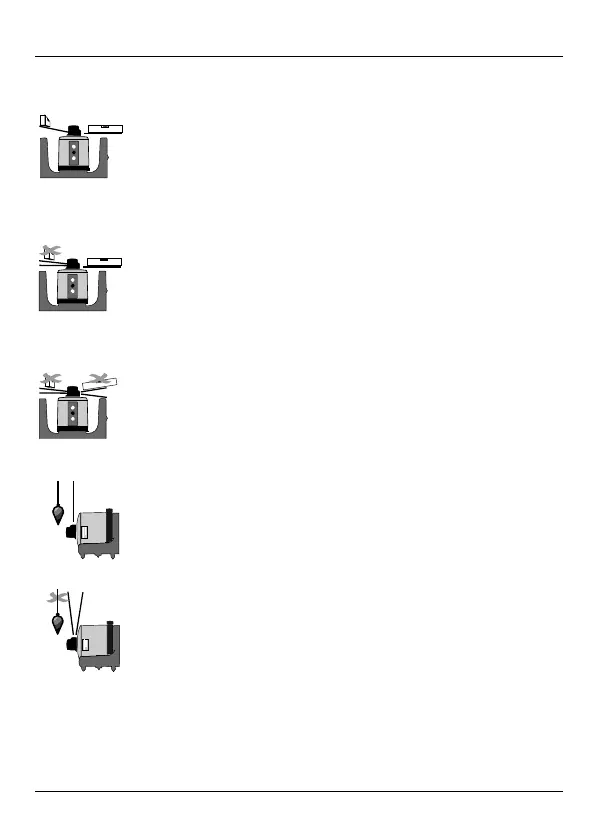

Levelled plane (automatic alignment)
Alignment takes place automatically after switching
on the tool, via 2 built-in servo motors for the X and Y
directions. The beam only switches on when the
specified accuracy has been reached.
Plane inclined in the X direction (defined incline
direction)
Inclination in the X direction can be set using the
servo button. The Y direction is held horizontal by the
servo system.
Plane at any desired inclination (free alignment)
The inclination can be matched, through (alternate)
operation of the X and Y motors in accordance with
given markers or contours.
Vertical plane (automatic alignment)
Alignment according to the plumbline (X direction)
takes place automatically. With the servo button, the
vertical plane can be manually aligned (rotated).
Inclined plane vertical (manual alignment)
In the inclined plane mode, the tool can be manually
aligned using the servo buttons that control the servo
motors.
