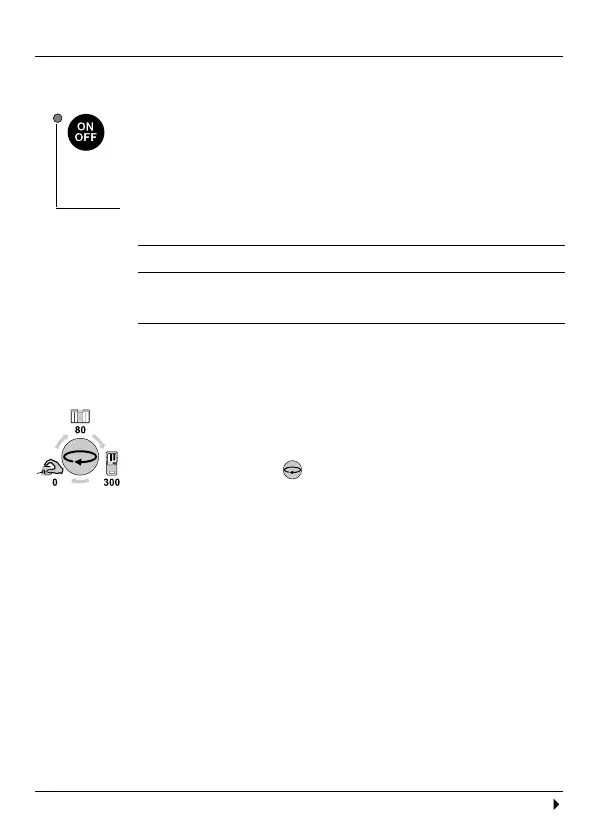

Control panel, continued
ON/OFF button
For switching the tool on and off. After the tool has
been switched on, the laser beams start blinking.
Operation / battery voltage LED
green Tool is switched on
flashing red Low battery voltage
continuous red Battery discharged
(➞
insert batteries
)
Operation LED (red) and Incline LED (orange) flashing
- Following a jolt to the tool
Speed button
Select desired operating mode (0 - 80 - 300) using
the Speed button . The selected mode remains
set even after the tool has been switched off.
0 Stopped: Laser rotating head does not turn –
laser beam is switched on permanently.
For manual alignment of the laser beam.
80 Laser rotating head turns at 80 rpm.
For beam catcher operating mode, for laser
beam radius 1 – 30 m.
300 Laser rotating head turns at 300 rpm.
For operating mode with manual detector,
for laser beam radius 1 – 100 m.
Continued
