▶ Do not press the switch when there is a blind rivet in the tool.
▶ Do not look directly into the light source (LEDs) of the power tool and do not aim the beam at other
persons’ faces. Risk of dazzling or eye damage.
Safety at the workplace
▶ Ensure that the working area is well lit.
▶ Keep the workplace tidy. Objects which could cause injury should be removed from the working area.
▶ Wear non-skid shoes.
▶ You and any other persons in the vicinity must wear suitable eye protection, a hard hat, ear protection
and protective gloves while the tool is in use.
▶ Keep the tool and blind rivets locked away when not in use, and always keep them out of reach of
children.
▶ Keep children and other persons away from the working area.
▶ Avoid unusual body positions. Keep proper footing and balance at all times.
▶ Before driving fasteners, check that no one is present on the other side of the sheet metal to be fastened.
▶ Take the influences of the surrounding area into account. Do not use the tool where there is a risk of fire
or explosion.
2.1.3 Careful handling and use of batteries
▶ Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries.
▶ Do not expose batteries to high temperatures, direct sunlight or fire.
▶ Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C
(176 °F).
▶ Do not use or charge batteries that have suffered mechanical impact, have been dropped from a height
or show signs of damage. In this case, always contact your Hilti Service.
▶ If the battery is too hot to touch it may be defective. Put the battery in a place where it is clearly visible
and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to
cool down. If it is still too hot to touch after an hour, the battery is faulty. Contact Hilti Service.
3 Description

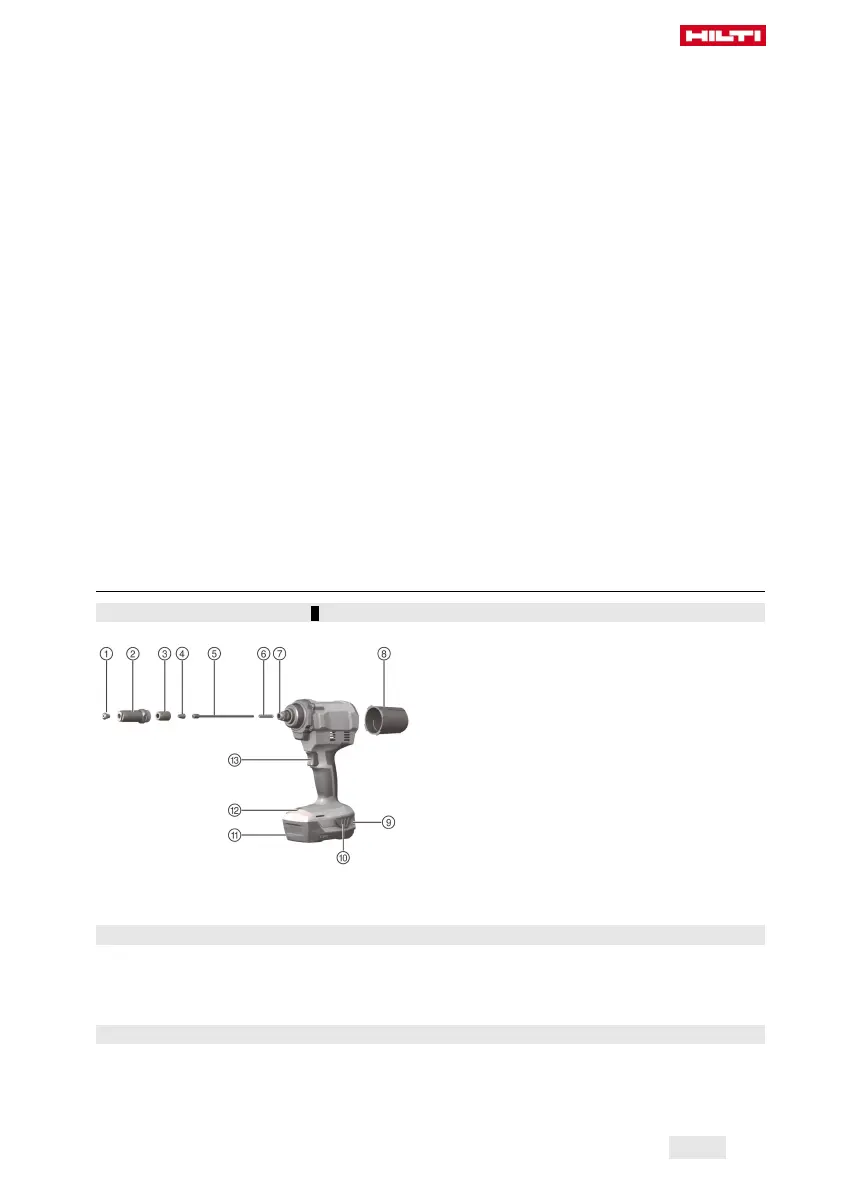

3.1 Overview of the product 1
@
Nosepiece
;
Steel sleeve
=
Jaw housing
%
Jaws
&
Jaw pusher
(
Pressure spring
)
Adapter
+
Mandrel container
§
Battery charge-status and fault indicator
/
Battery release buttons (also used to activate
the charge status indicator)
:
Battery
∙
Light source / overload LED
$
Switch
3.2 Items supplied
Blind-rivet setting tool, 4 nosepieces, wrench, removable mandrel container, operating instructions.
Other system products approved for use with this product can be found at your local Hilti Store or at:
www.hilti.group
3.3 Intended use
The product described is a hand-held cordless blind-rivet setting tool.
▶ Use only Hilti Li-ion batteries of the B22 series with this product.
▶ Use only Hilti battery chargers of the C4/36 series for these batteries.
