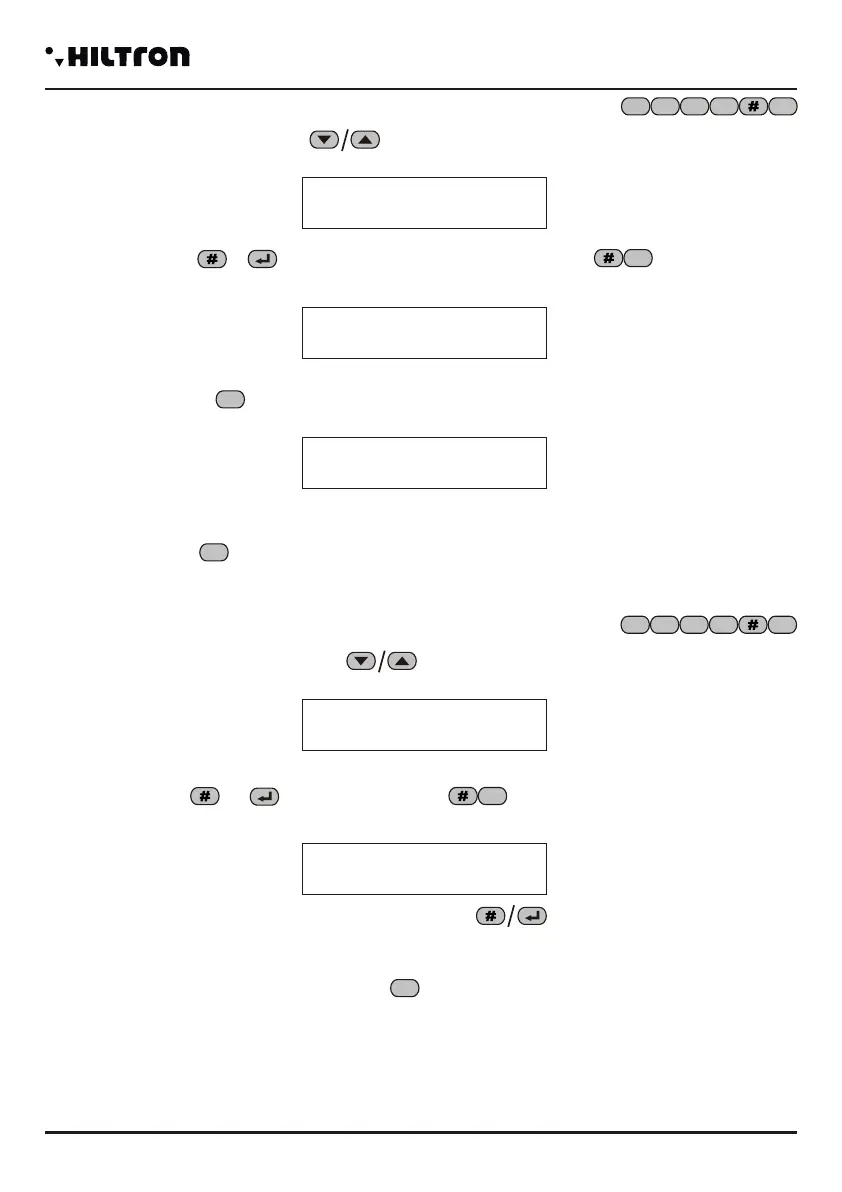

3.6 Test Call
In the Programming menu , press until you visualize:
and dial the button or or dial (SETUP CODE)
On the display will appear :
Dial the telephone number that you wish to call followed by
During the test call, it is not possible to communicate from the called phone but it is possible to send
DTMF tones. In order to end the phone call dial
5 6 7
8
6
6 Test Call
Ins. Disconnected
6
Insert number
ESC
3.4 Installation RESET
It is useful to end the telephone communications, forcing the reboot of the GSM module and of the
central unit.
In the Programming menu, use the buttons until you visualize:
and dial the the button or , or dial (SETUP CODE)
5 6 7
8
4
4- Erase Reset
Ins.Disconnected
4
security
PROTEC4GSM - PROTEC8GSM - Installation guide and use
security
Programming
35
34
3.3 Info
In the programming menu use the buttons until you visualize:
Press or or directly (SETUP CODE) in order to visualize the informations of the
central computer:
Using the buttons is possible to scroll and visualize the other information:
Firmware release :
IMEI of the GSM module:
(with a turned on module only and registered SIM)
Status of power supply:
The indications of the status of the power supply are:
-on the first line of the display
Battery OK with the indication of the tension supplied.
Absence Network
- on the second line of display
Battery OK 13,5 v
Battery fault (when there is a low voltage or it requires a current overcharging ).
Dead battery (the battery is not able to supply enough current to power the circuit).
5 6 7
8
3
3-Info
Ins. Disconnected
HILTRON
8 zone GSM
3
Rel. Firmware
282gSW- x.xx.xx
IMEI
123456789012345
Network OK 14,5v
Battery OK 12,9V
3.5 ERASE Setup
In the Programming menu press until you visualize:
and press the button or , or dial directly the SETUP code followed by
The central computer requires to confirm to erase:
Confirm to erase dialling and the display will visualize for a moment:
With this operation you can download all the factory settings in the central computer.
If you dial the button , the resetting is cancelled.
5 6 7
8
5
Ins. Disconnected
5 - Erase Setup
5
Conf Resetting?
7 = YES 9=NO
7
DEFAULT
9
