PowerGem Plus User Manual
16

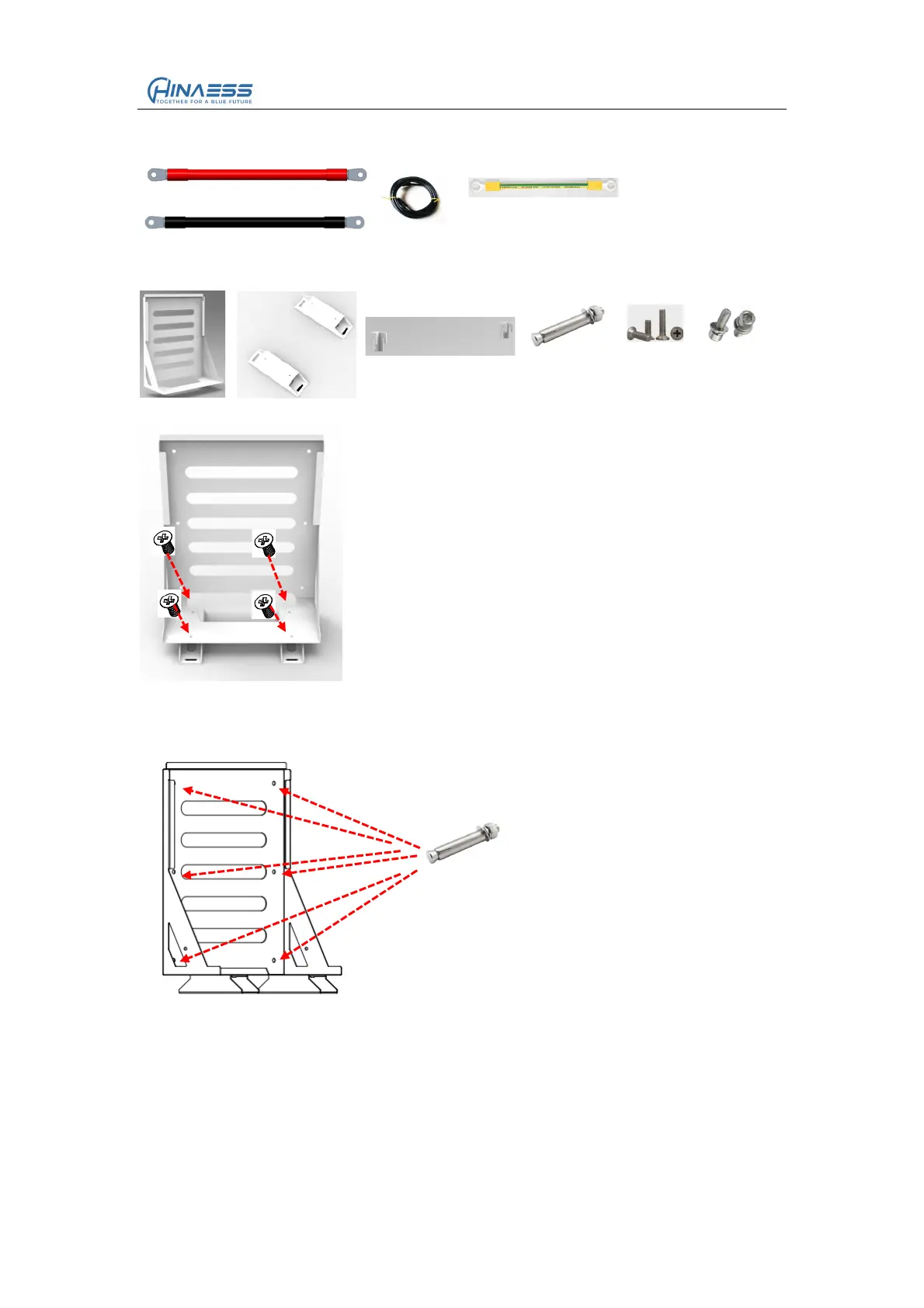

Accessories:(Optional)
Cables:
Bracket1: Bracket2: Bracekt3: Bolt Screw1: Screw2:
1. Connect the Bracket2 to Bracket1 firstly,use 4*Screw1 to fix
2. Place the bracket1 against the wall and mark the coordinates of the 6 holes.Drill holes for
the M10*80 bolts, and then bolt the Bracket1 to the wall .
3. Fix the Bracket3 on the back of battery with 4*Screw2,hook is face down.
To Next Page
