Voltage: U>60V
Current: I =
Inverter power
45V
The DC breaker is necessary to be installed between the battery module

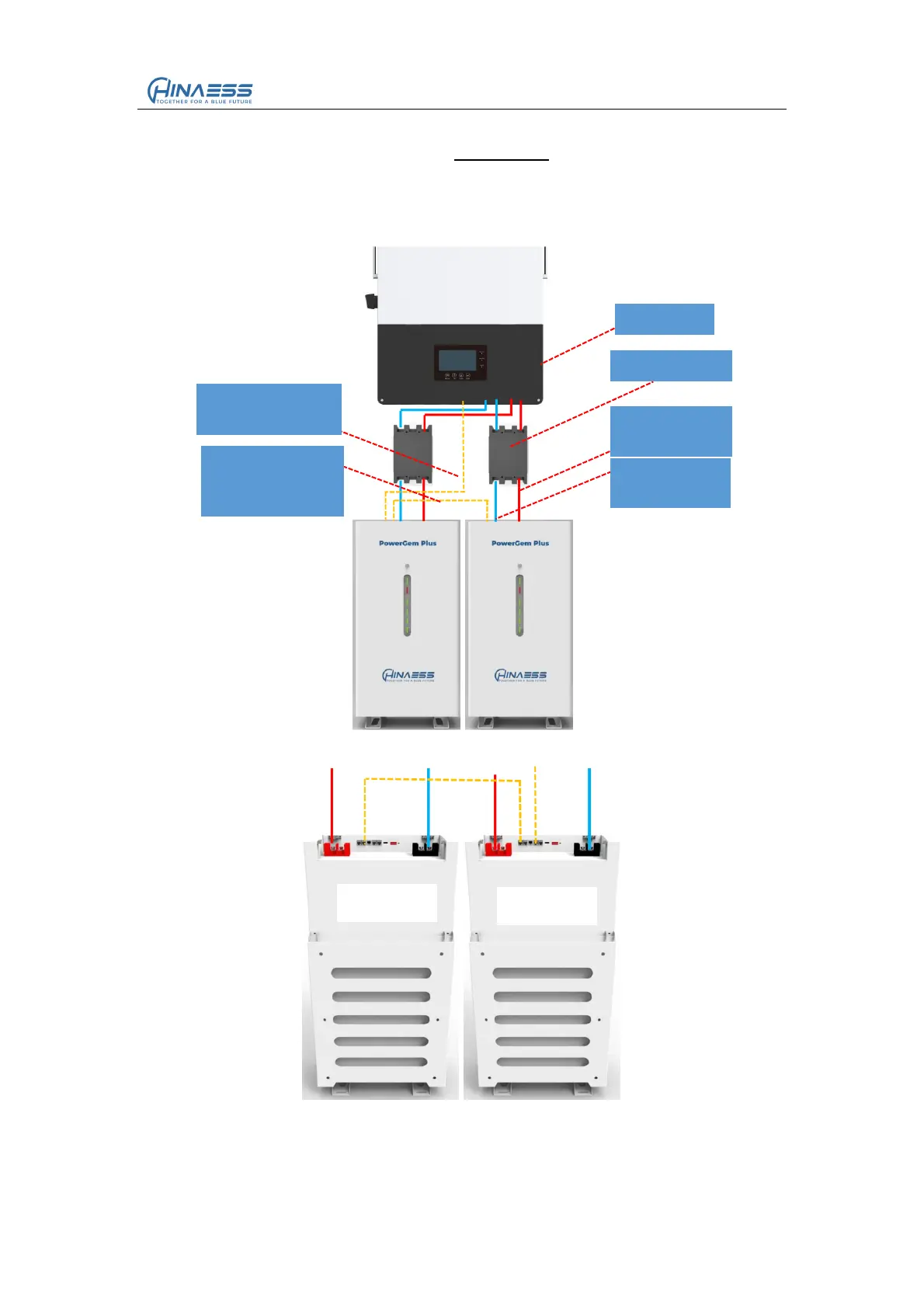

and the inverter, as shown in Figure 3-3:
Figure3-3
Power cable-
Positive
Power cable-
Negative
Communication
cable-to inverter
Communication
cable between
batteries
Inverter
Slave
Master
DC Breaker
