Redundant coupling
Redundancy L2E
Release
4.1
03/08
3.2
Configuring the redundant coupling
39
The coupling mode indicates the type of the connected network.
In the “Coupling Mode” frame, select (see fig. 19)
– “Ring Coupling” or
– “Network Coupling”

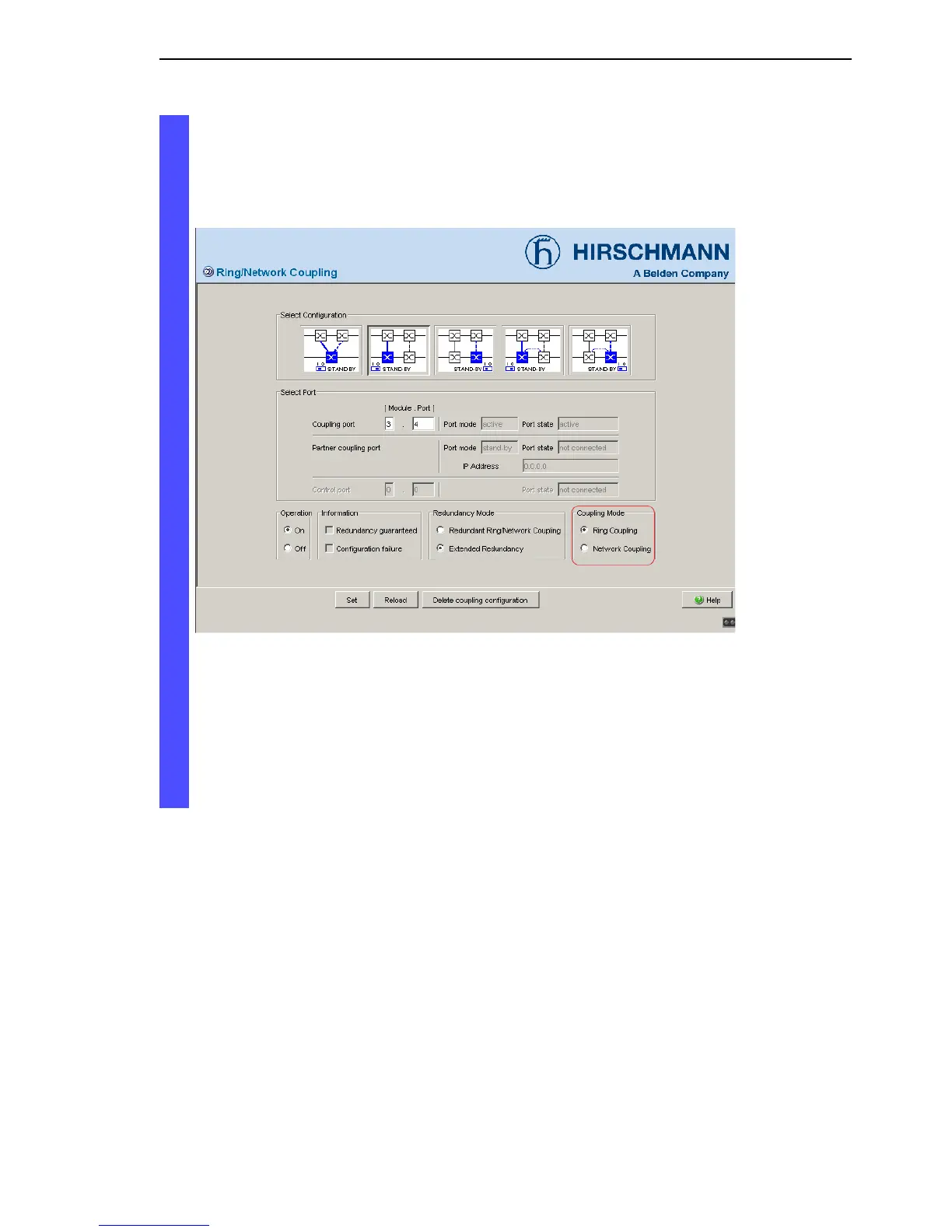

Figure 19: Selecting the coupling mode
Select “Ring coupling” if you are connecting a HIPER-Ring.
Select “Network Coupling” if you are connecting a line structure.
Delete coupling configuration
The “Delete coupling configuration” button in the dialog allows you
to reset all the coupling settings of the device to the state on delivery.
