Hirschmann RS40 User Manual

Redundant coupling
Redundancy L2E
Release 4.1 03/08
3.2 Configuring the redundant coupling
27
3.2.2 One-Switch coupling

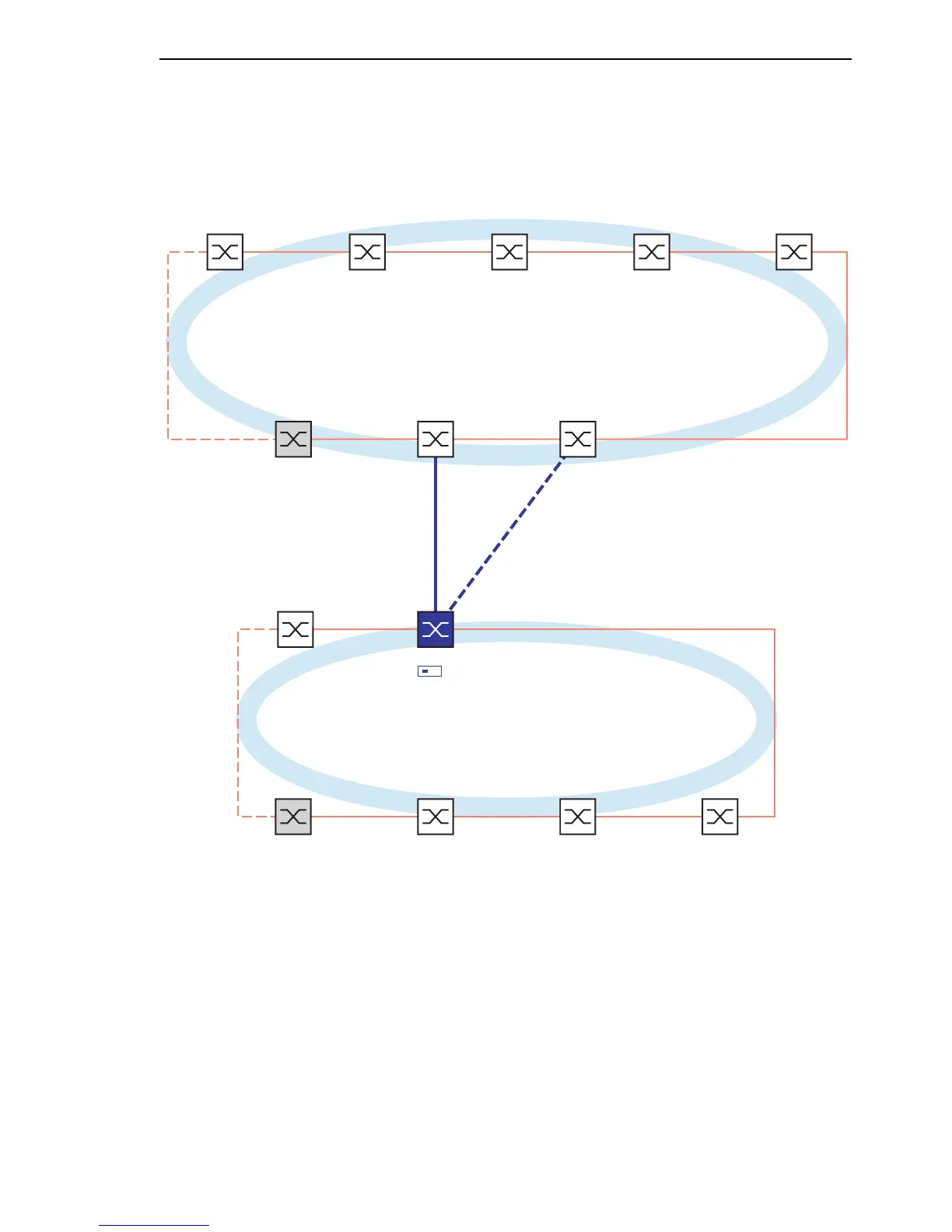

Figure 7: Example of one-Switch coupling
The coupling between two networks is effected by the main line (thick blue
line), which is connected to the partner coupling port. If the main line fails, the
redundant line (thick blue dotted line), which is connected to the coupling
port, takes over coupling the two networks. The coupling is effected by one
Switch.
Backbone
Redundancy Manager On
Ring
Redundancy Manager On
Main line Redundant line
Partner coupling port Coupling port
STAND-BY
IO
