Redundant coupling
Redundancy L2E
Release
4.1
03/08
3.2
Configuring the redundant coupling
41
Connect the two partners via their ring ports.
If the STANDBY DIP switch is OFF, connect the main line to the coupling
port.
Select the Redundancy:Ring/Network Coupling dialog.
Select two-Switch main coupling
with control line (see fig. 21).

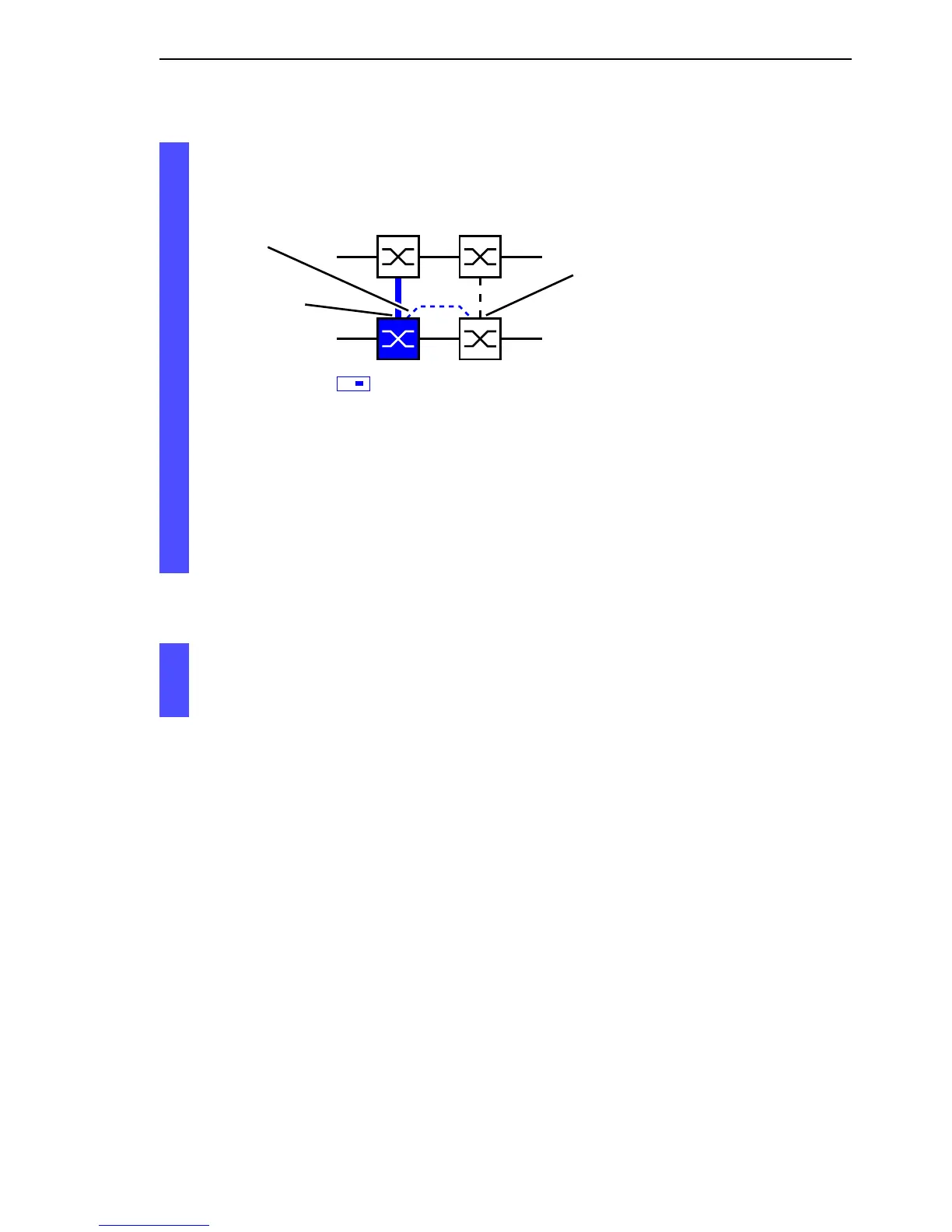

Figure 21: Two-Switch coupling with control line
The following settings apply to the Switch displayed in blue in the
selected graphic.
Select the coupling port (see fig. 22), (see table 10).
With “Coupling port” you specify at which port you are connecting
the redundant line.
Select the control port (see fig. 22), (see table 10).
With “Control port” you specify at which port you are connecting the
control line.
IO
STAND-BY
Partner
coupling
port
Coupling
port
Control
port
