Rapid Spanning Tree
Redundancy L2E
Release 4.1 03/08
4.2 Rules for creating the tree structure
55
X If two paths with the same root path costs lead out from a bridge, the port
identifier is used as the last criterion (see fig. 29). This decides which port
is selected.

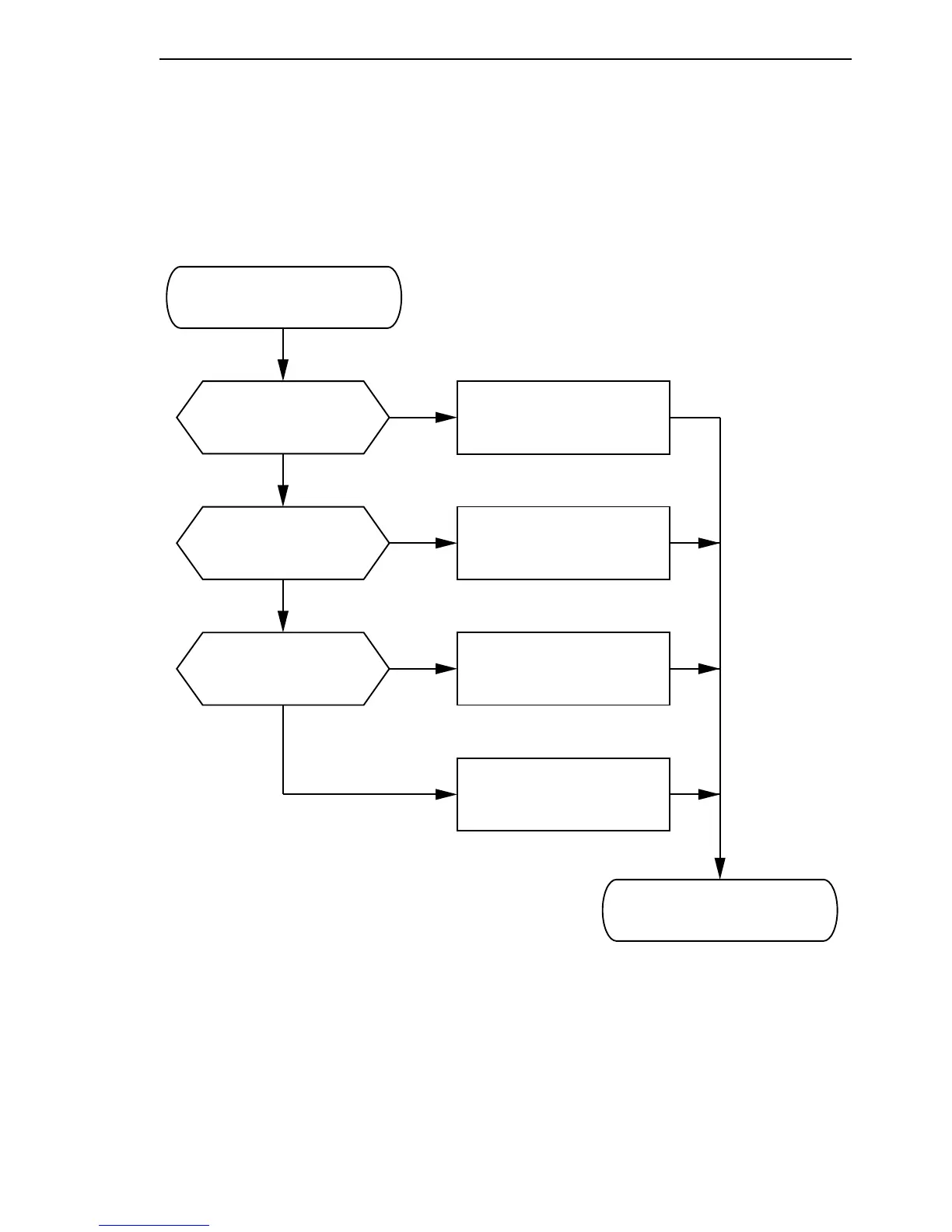

Figure 30: Flow diagram for specifying the root path
Equal
path costs?
Determine root path
no
yes
Equal
priority in
bridge identification?
Equal
port priority?
yes
yes
Path with lowest
path costs = root path
Path with highest
port priority
= root path
Path with highest
priority in bridge
identification = root path
no
no
Path with lowest
port number
= root path
Root path determined
