4.3 Example of specifying the root paths
57

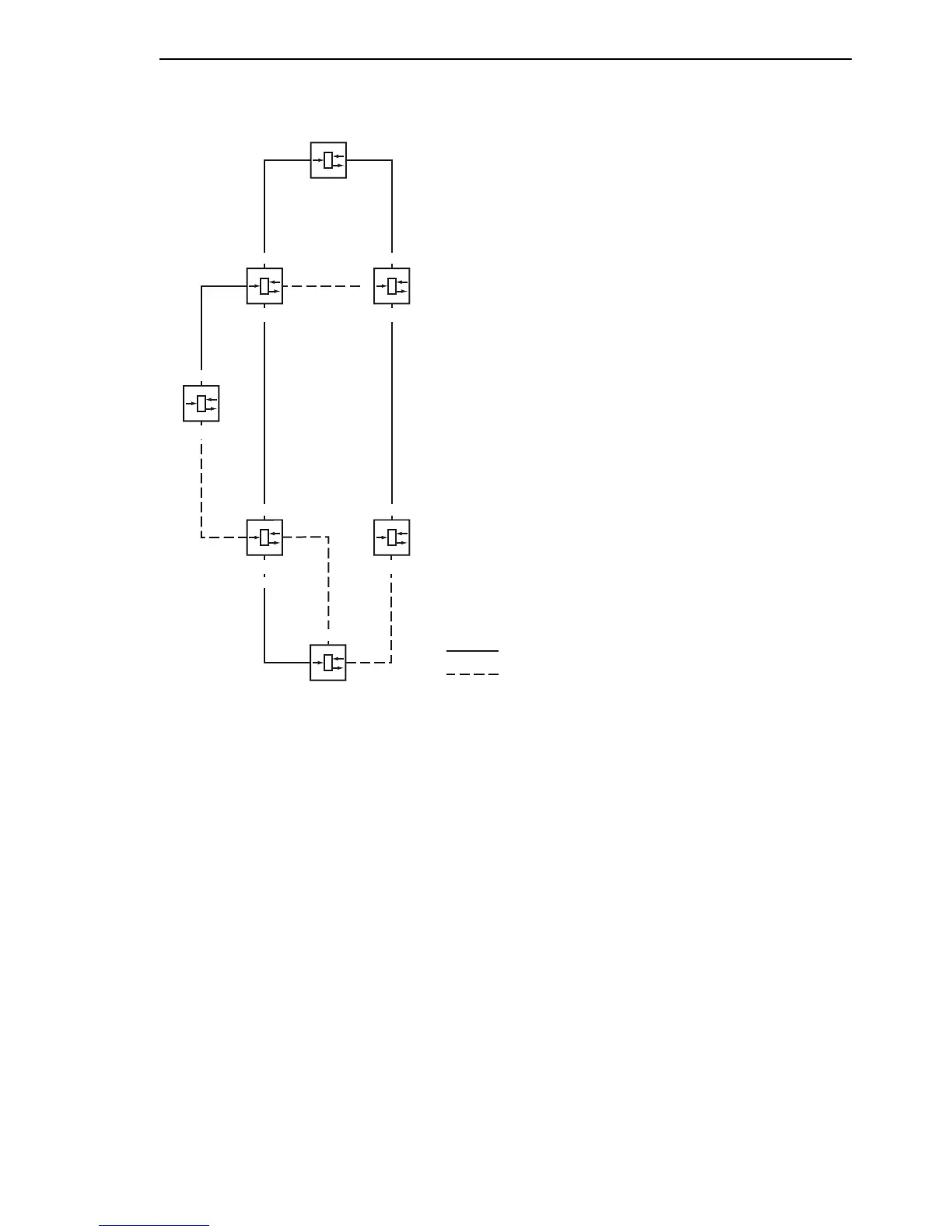

Figure 31: Example of specifying the root path
Root path
Port 2
Interrupted path
P-BID Priority of the bridge identifikation (BID)
= BID without MAC Address
Bridge 1
P-BID = 16 384
Bridge 2
P-BID = 20 480
Bridge 3
P-BID = 24 576
Bridge 5
P-BID = 32 768
Bridge 6
P-BID = 36 864
Bridge 4
Port 1
Port 3
Bridge 7
P-BID = 40 960
P-BID = 28 672
