Rapid Spanning Tree
66
4.6
The Rapid Spanning Tree Protocol
Redundancy L2E
Release
4.1
03/08

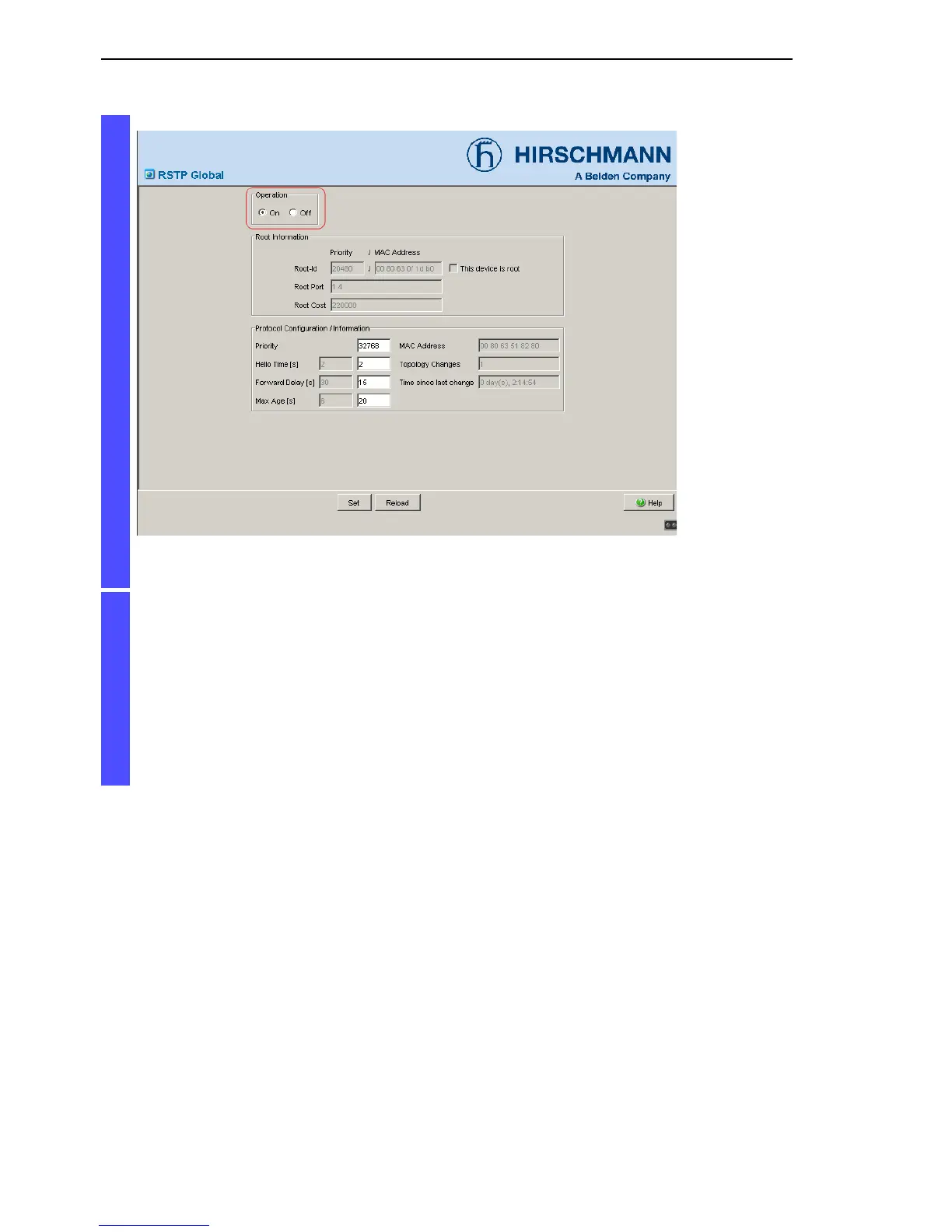

Figure 35: Operation on/off
You now connect the redundant lines.
Define the desired Switch as the root Switch by assigning it the
lowest priority in the bridge information among all the Switches in the
network, in the “Protocol Configuration/Information” frame. Note that
only multiples of 4096 can be entered for this value (see table 13).
In the “Root Information” frame, the dialog shows this device as the
root.
A root switch has no root port and no root costs.
