6. Introduction to Water Module
6.1 Accessories and Optional Parts
Table 6.1 are packed and transported with water
module.Check to ensure that the accessories listed in.
If any of these accessories are not packed and transported
with the water module, contact your local dealer.
Before installation and commissioning, do not put
any irrelevant materials in water module. Ensure
that there are no foreign materials into the unit.
Otherwise, a fire or an accident may occur.

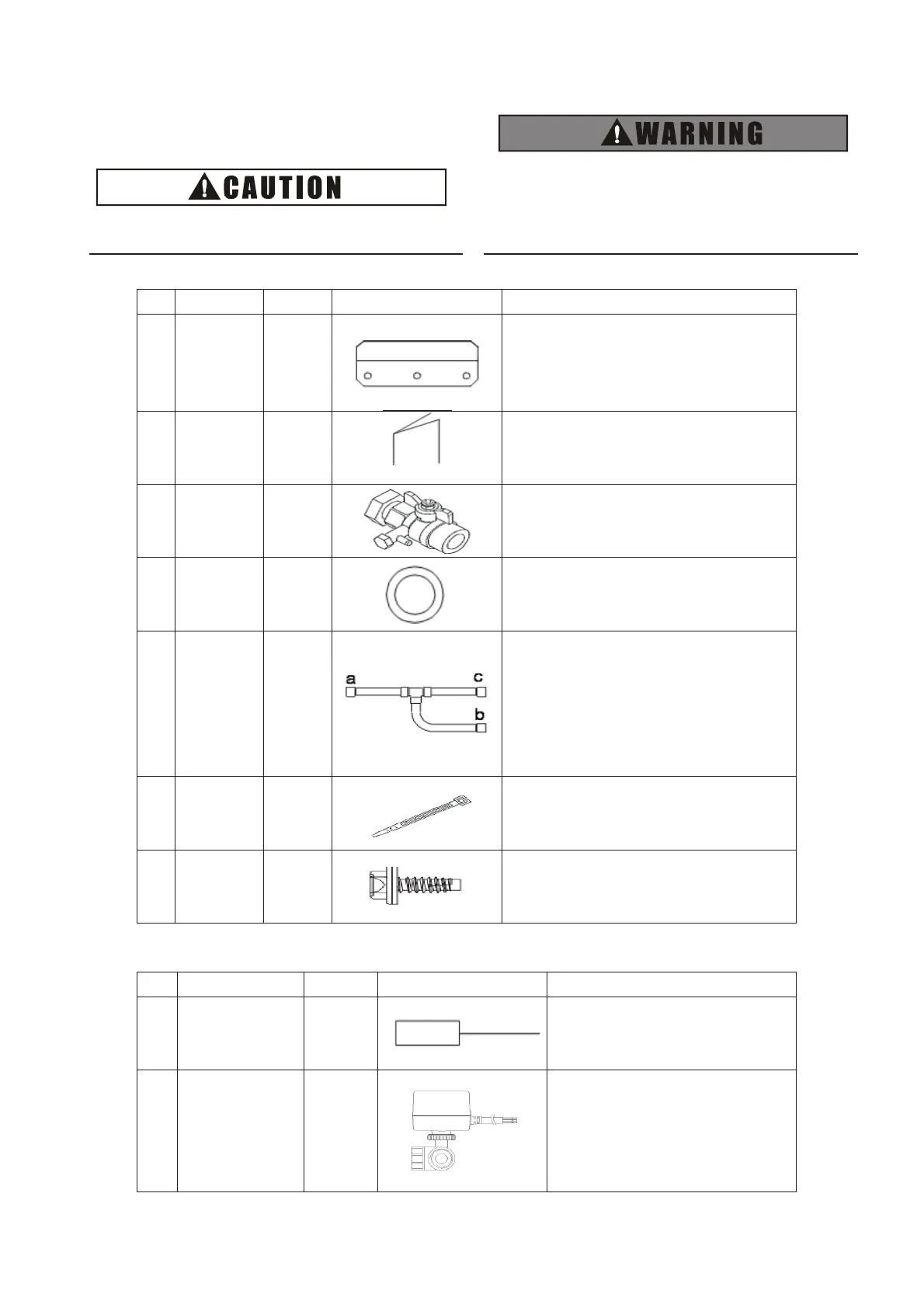

Table 6.1 Accessories
No. Name Quantity Picture Remarks
1
Wall
Hanging
Board
1
Temporarily fix water module on the wall; for
actual fixing, the expansion bolts must be
used to securely fix water module on the
wall.
2
Instruction
Manual
1
3 Ball Valve 2
Connect at the wat
er inlet/outlet of water
module, for connecting/disconnecting water
pipe, drain and filling.
7
Rubber
Gasket
2
Used for sealing the connections betwe
en
water module and ball valves.
4
Liquid
Tube
Manifold
1
It is used for the first manifold of liquid tube of
the refrigerating system. Opening a connects
liquid tube of outdoor unit; opening b
connects liquid tube of water module, and
opening c connects the liquid tube of indoor
unit.
5 Strap 3
6
Stainless
Steel
Screw
4
No. Name Quantity Picture Remarks
1
Water Tank
Temperature
Sensor
1
Used when system is connected
to the domestic water tank.
Detectwater tank temperature.
2
Electric Tee
Valve
1
Used when the domestic water
tank and the floor heating are
connected. Switch water pi
pes
between domestic water tank and
floor heating.
Table 6.2 Optional Parts
If any of these accessories are not packed and transported
with the water module, contact your local dealer.
Before installation and commissioning, do not put
any irrelevant materials in water module. Ensure
that there are no foreign materials into the unit.
Otherwise, a fire or an accident may occur.
