10.2 Wiring
10.2.1 Structure Diagram

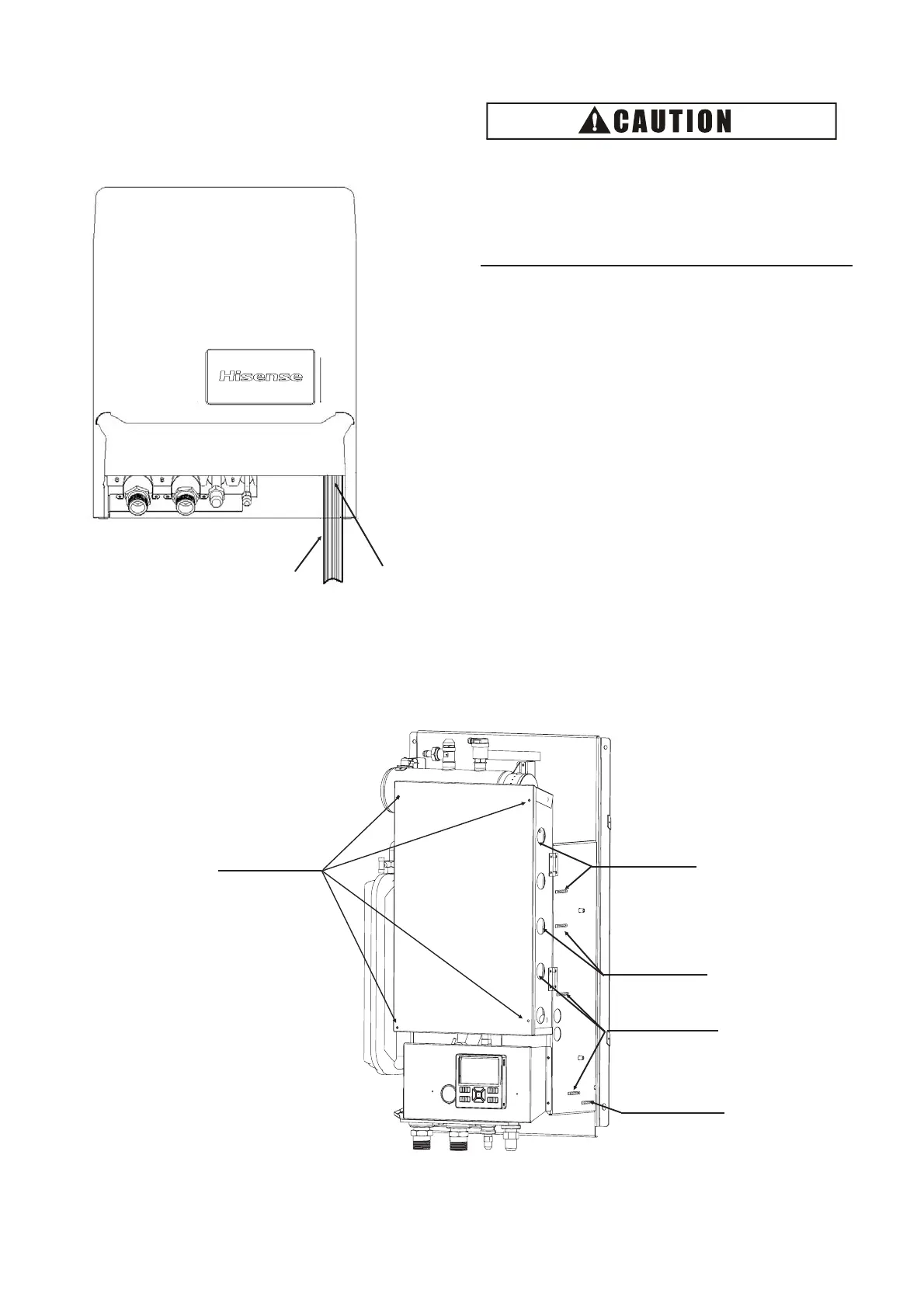

(1) See holes linking electric wire in water module in
Fig.10.1.
Conduit G oes
into M achine
Electric Wire
G oes into
M achine
Fig.10.1 Electric Wiring Location Diagram
(2) Inner wiring diagram of water module 10.2
Fig.10.2 Inner Wiring Diagram
Indoor and outdoor unit must adopt fixed wiring.
Conduit must be hard and goes into machine.
Tighten electric wire and communication cable with
wire holder shown in Fig.10.2.
Remove four fixation screws
on electric box cover, you
can see terminal blocks
Externally link to were
holder of control line
and entrance hole
Wire holder of electric
wire and entrance hole
Wire holder of communication
cable and entrance hole
Wire holder of
electric wire
Here
From
Indoor and outdoor unit must adopt fixed wiring.
Conduit must be hard and goes into machine.
Tighten electric wire and communication cable with
wire holder shown in Fig.10.2.
