18
Wired Remote Control Switch and Wireless Remote
Control Switch can not be used simultaneously .If
Wired Remote Control Switch is connected ,Disconnect
the wire of signal receptor in the electrical box. As
shown in the Fig.7.3.
Disconnect the wire
of signal receptor
(194°F).
ELB must be connected to the power
circuit. If not ,it may be danger.
Apply the specified screw for terminal
board and fasten the screw firmly.

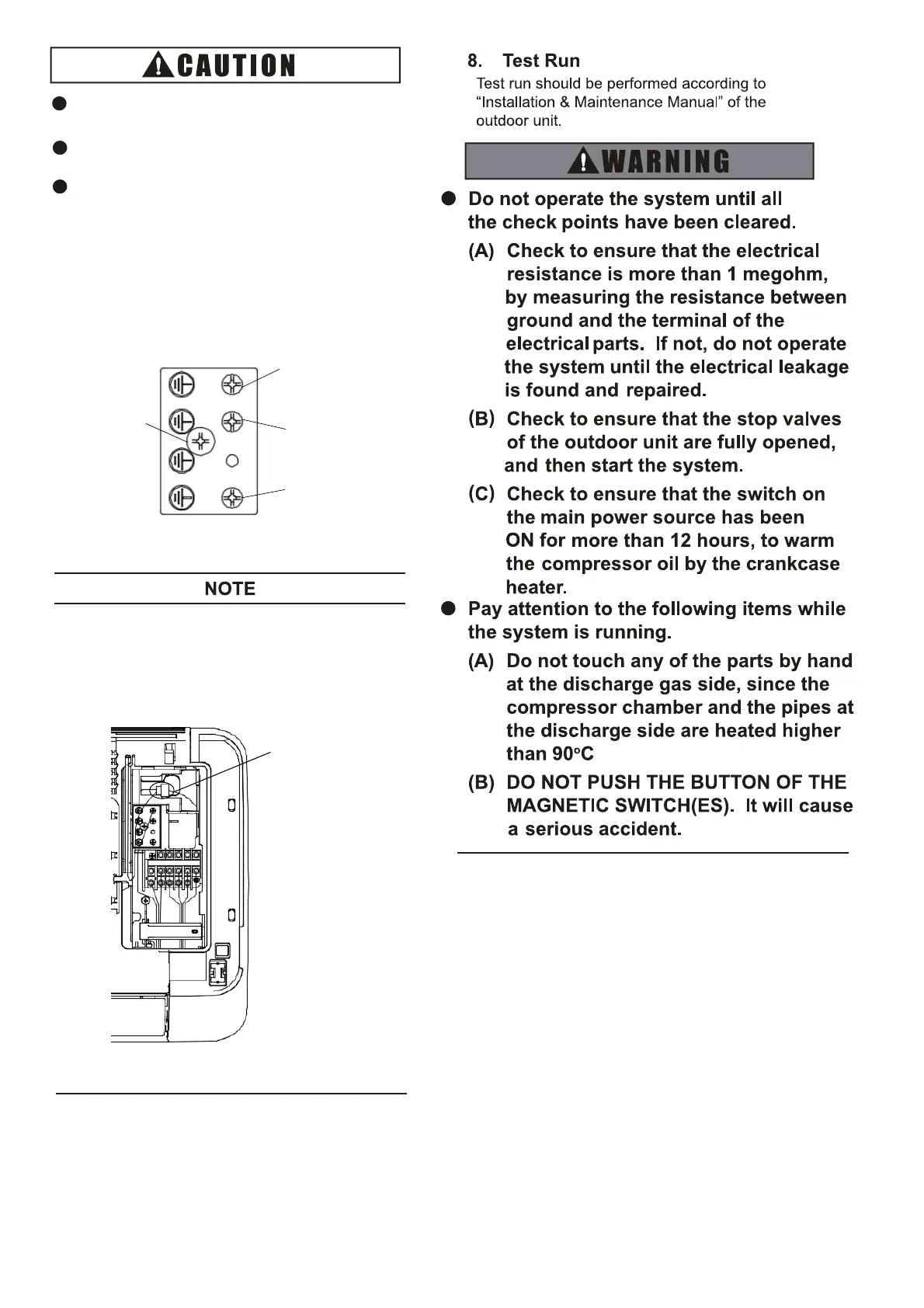

There is a fixed screw and three earth wire
screws on the TP. As shown in the Fig.7.2,
the screw for fixing TP and electrical box,
earth wire screw 2 and 3 are installed in the
factory, and the earth wire screw 1 is
connected to the earth screw of the power
line outside the factory. The fixed screw
can't connect to power cord.
Earth wire screw 1
(Installation outside
the factory)
Earth wire screw 2
(Installation in the
factory)
Earth wire screw 3
(Installation in the
factory)
Screw for fixing
TP and electrical
box (Installation
in the factory)
Fig.7.2 Screw Description for TP
Fig.7.3 Connection description for signal receptor
