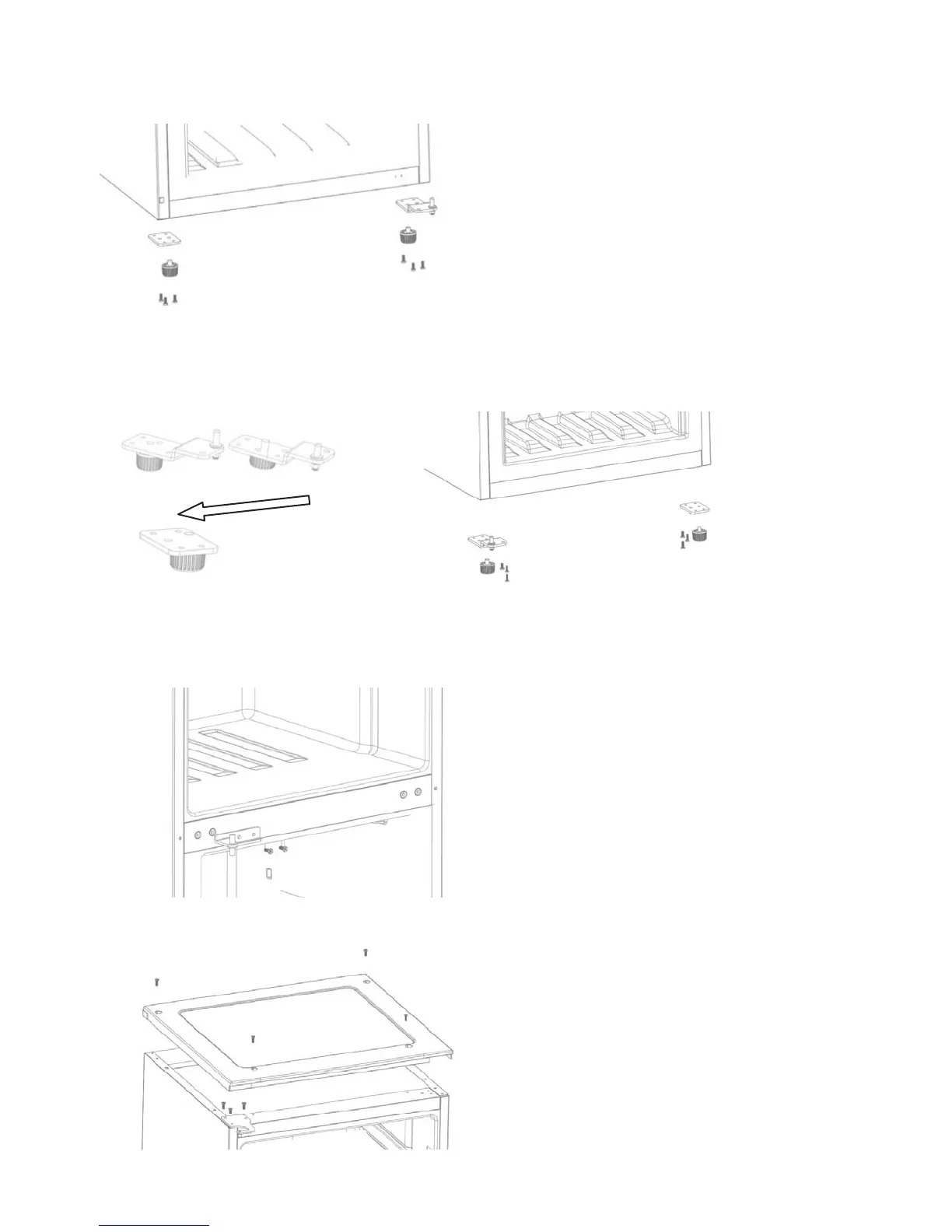

6. Remove both adjustable feet and remove the bottom hinge bracket by unscrewing
the bolts.
7. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. Refit
the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the
lower door to the property position. Secure the doors level, make the bottom hinge pin
into the lower hole of the door, then tight the bolts.
8. Make the middle hinge reverse the direction 180 degree, then transfer it to the left
property position. Make the middle hinge pin in the upper hole of the lower door, then
tight the bolts. Transfer the upper door to the property position. Secure the doors level;
make the middle hinge pin into the lower hole of the upper door.
9. Replace the lid by fitting the upper hinge core into the upper doors hole, securing it
with the 4 screws. Replace the screw covers.
