Wireless Receiver Kit

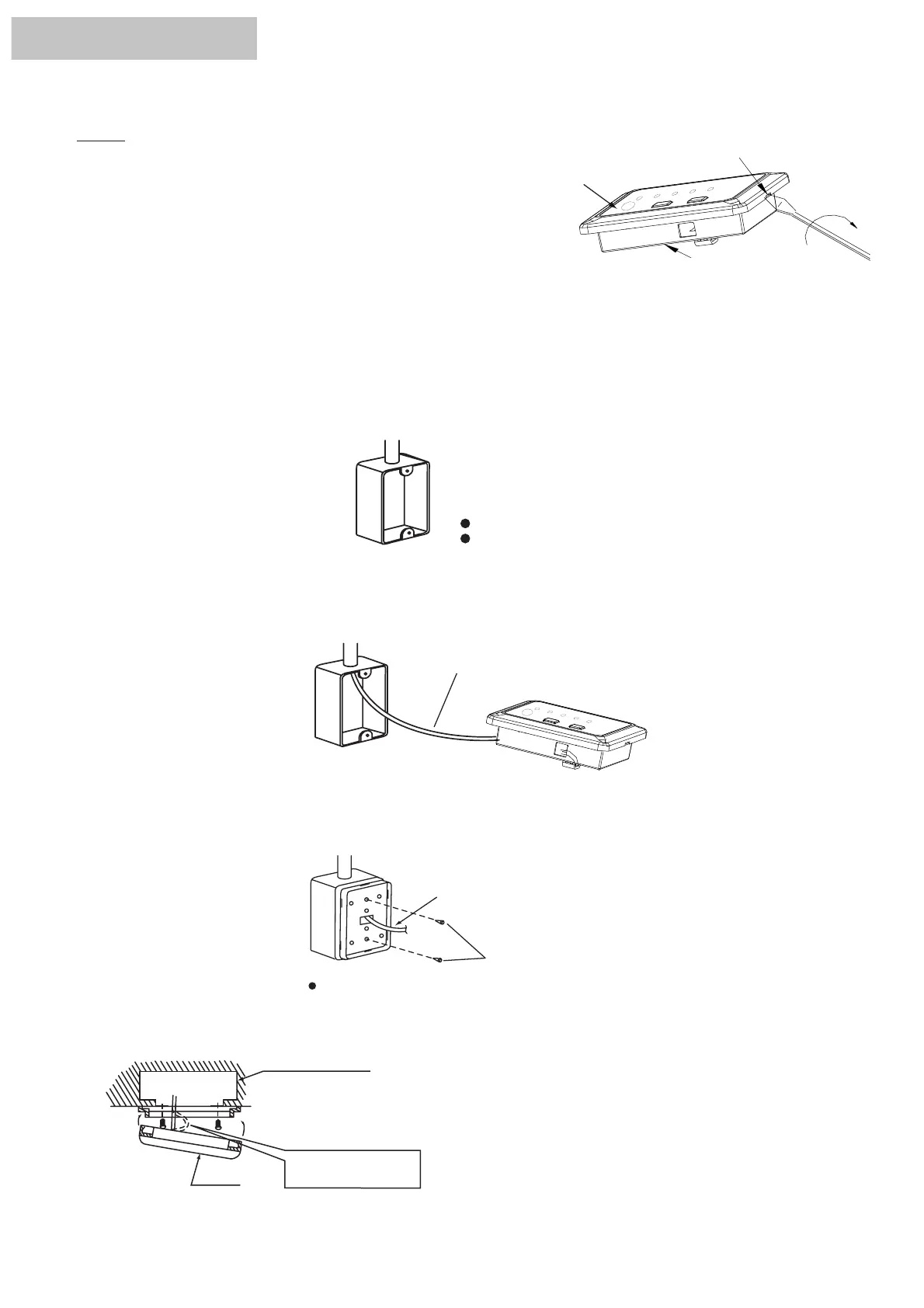

6) Install the wireless receiver kit onto the wall or ceiling as follows:
(1) Prepare the following box (Field-Supplied).
(2) Insert the cable into the rigid metal conduit.
(3) Fix the fixing bracket of kit by using screw
(Field-Supplied).
(4) Attach the cover same as A-(4).
ＨＹＲＥ－Ｖ０１Ｈ
ＨＹＲＥ－Ｖ０２Ｈ
NOTE:
Install the receiver kit onto the wall or ceiling near the indoor unit.
1) Install the wireless receiver kit and indoor unit at the same time.
2) In case that the wireless receiver kit is installed after installing the
indoor unit, turn OFF the power source of the indoor unit.
3) Check to ensure that the distance between the wireless receiver kit
and the indoor unit is shorter than 5m.
5) Remove the cover by using slotted screwdriver.
Cable
Cable
Screw (Field-Supplied)
This figure shows the case of Switch Box for 1 Controller.
Rigid Metal Conduit
Screw (M4) (Field-Supplied)
Box (Field-Supplied)
(Step 2)
Click Sound.
Check to ensure that
cable is not loosen.
(Step 1)
Hooking Part
Cover
and the EMI Source is larger than 3m.
)
4 Check to ensure that the distance between the wireless receiver kit
Slot
Cover
Holding
Bracket
To Next Page
