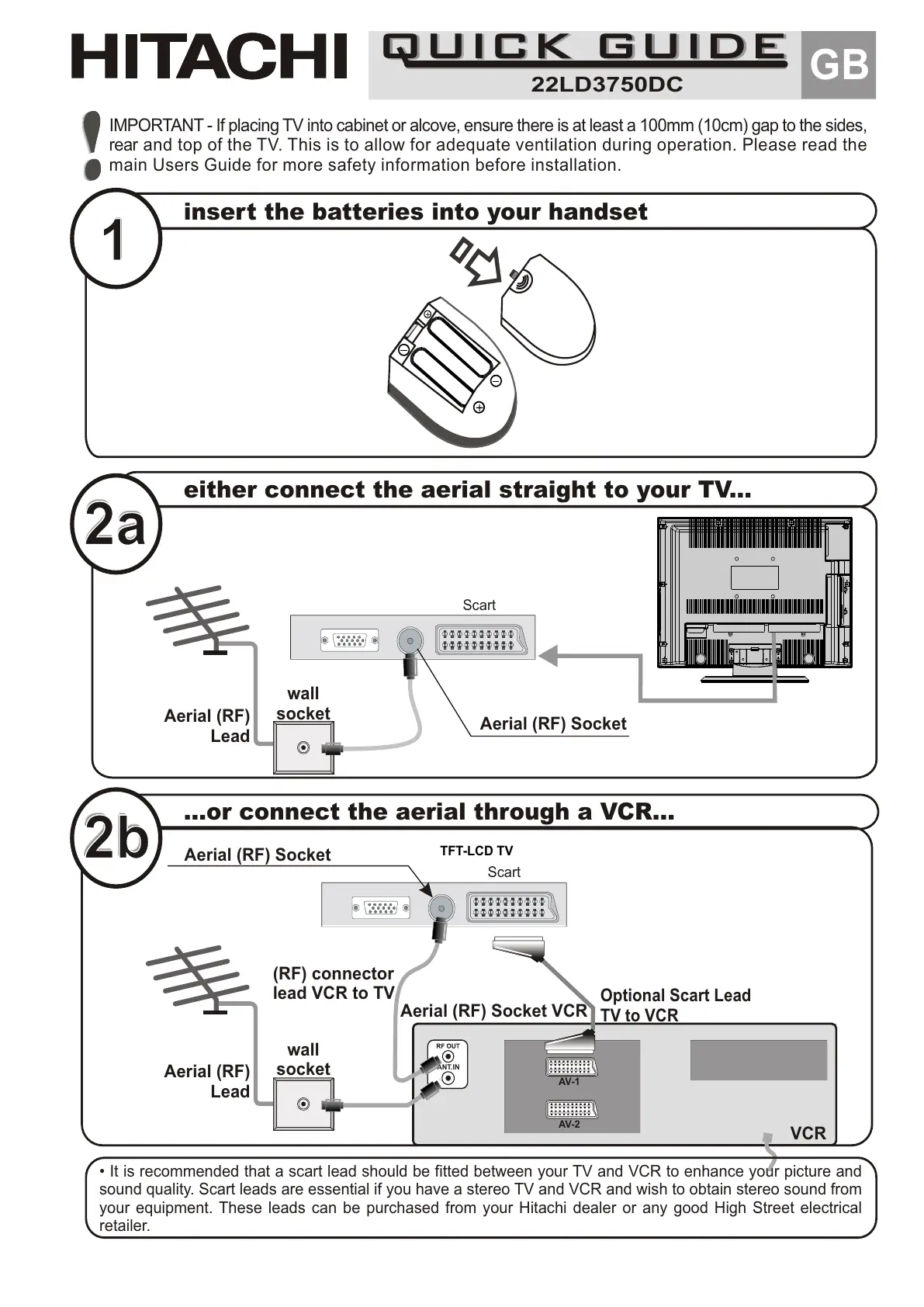

QUICK GUIDEQUICK GUIDE
QUICK GUIDE
IMPORTANT - If placing TV into cabinet or alcove, ensure there is at least a 100mm (10cm) gap to the sides,
rear and top of the TV. This is to allow for adequate ventilation during operation. Please read the
main Users Guide for more safety information before installation.
insert the batteries into your handset
either connect the aerial straight to your TV...
...or connect the aerial through a VCR...
Aerial (RF) Socket
Aerial (RF) Socket
wall
socket
wall
socket
Aerial (RF)
Lead
Aerial (RF)
Lead
Optional Scart Lead
TV to VCR
Aerial (RF) Socket VCR
(RF) connector
lead VCR to TV
• It is recommended that a scart lead should be fitted between your TV and VCR to enhance your picture and
sound quality. Scart leads are essential if you have a stereo TV and VCR and wish to obtain stereo sound from
your equipment. These leads can be purchased from your Hitachi dealer or any good High Street electrical
retailer.
22LD3750DC
TFT-LCD TV
GB
Scart
Scart
To Next Page
