ABOUT THE SYSTEM SYSTEM REAR VIEW
14

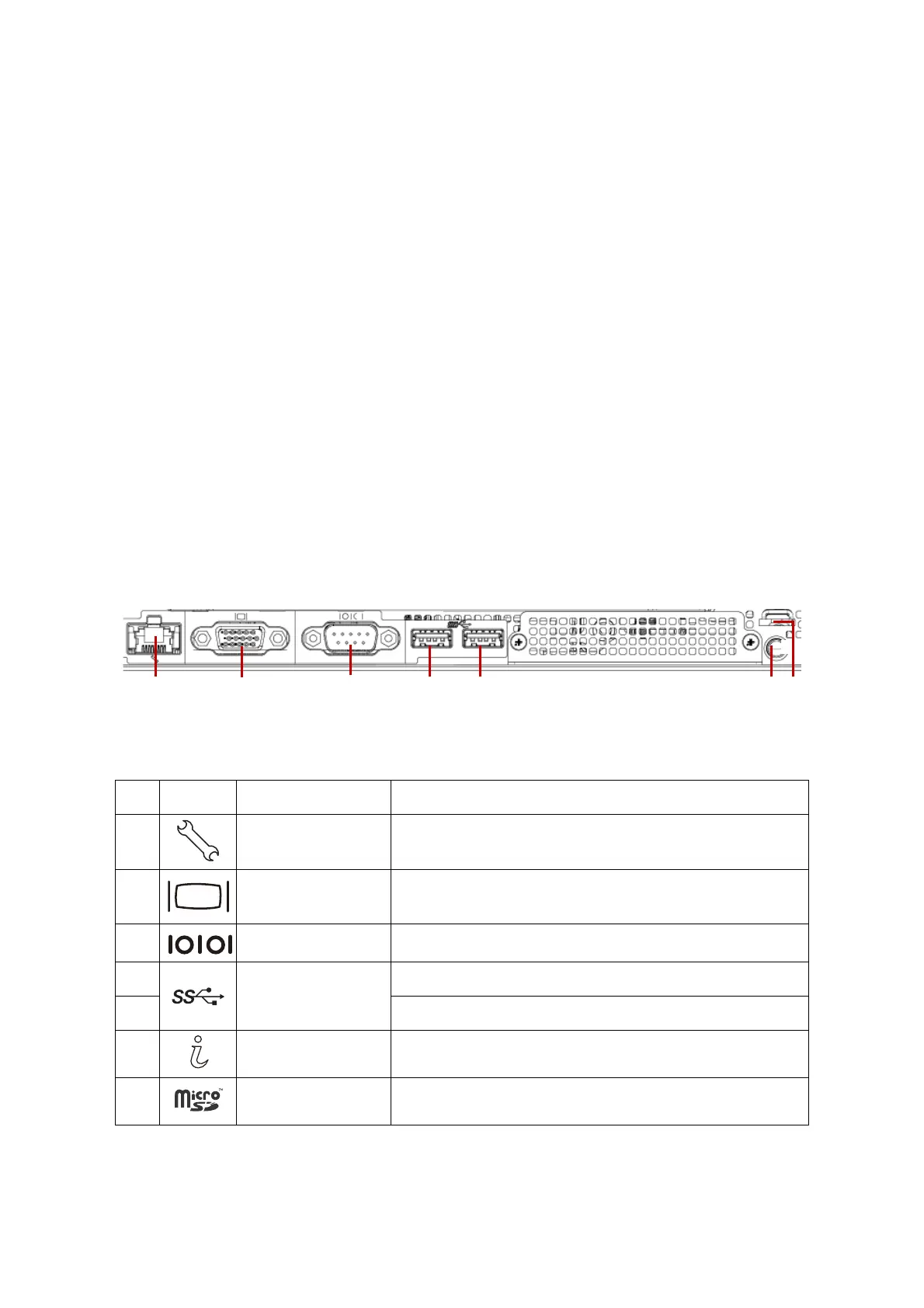

System Rear I/O
Figure 6. System Rear I/O
Table 9: System Rear I/O Descriptions
NO.ICON NAME DESCRIPTIONS
1 Dedicated NIC BMC dedicated RJ45 connector
2VGA port
Maximum display resolution: 1920x1200 32bpp@60Hz
(reduced blanking) (Display Priority: First; one device one time)
3 COM A port DB9 port (Serial_A) for debug or terminal concentrator
4
USB 3.0 port
USB 1 port; connect to USB device
5 USB 0 port; connect to USB device
6 Identification LED Blue blinking - Identifier; Off - Normal.
7 MicroSD slot Backup BMC SEL.
