--- 37 ---
Hex. bar wrench
(2.5 mm)

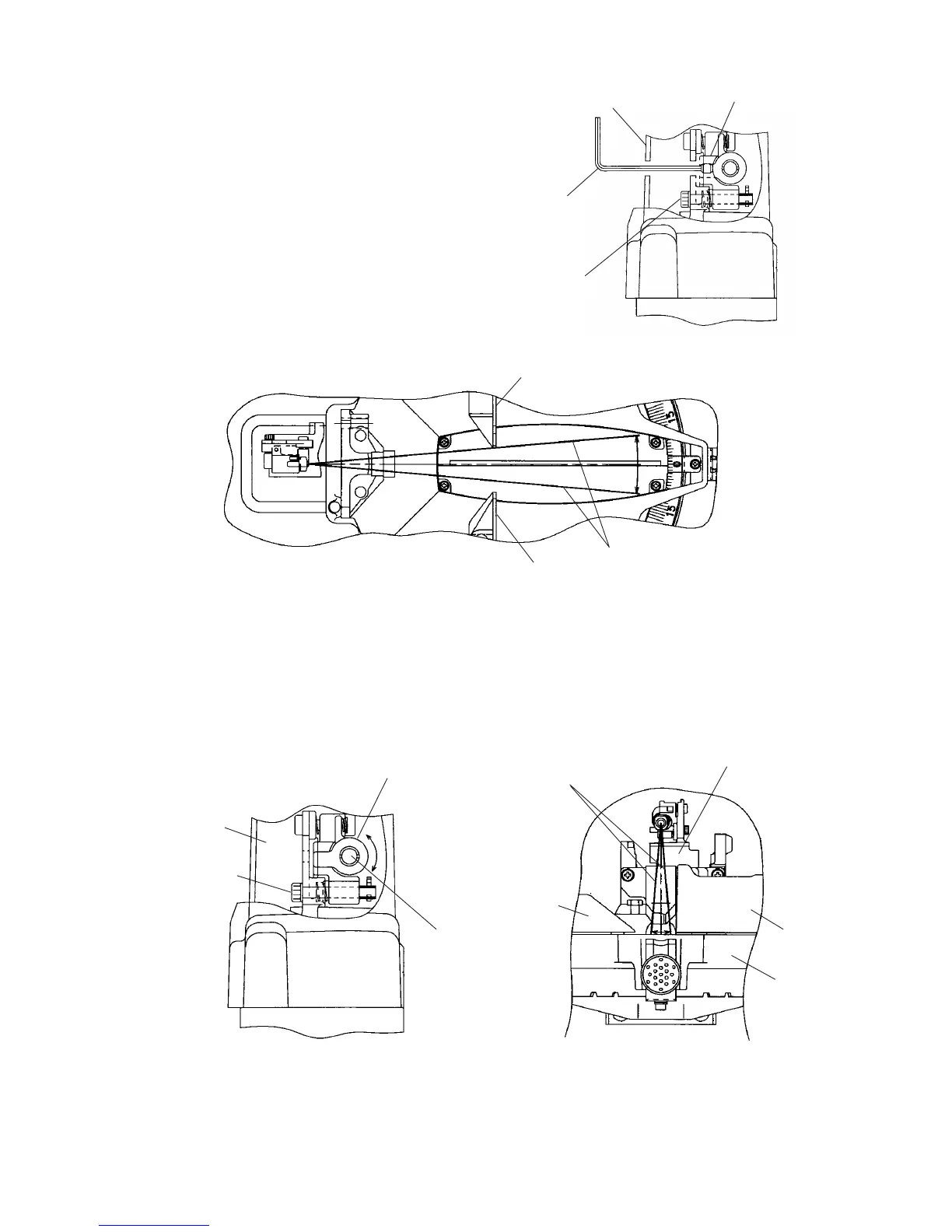

(2) Adjustment of squareness with the fence surface
The laser line inclines to the left by turning the hex.
socket set screw M5 x 6 clockwise and inclines to the
right by turning counterclockwise.
The squareness of the laser line with the fence
surface can be adjusted in this manner.
Gear Case [123]
Special bolt M5
Hex. socket set
screw M5 x 6
Fig. 40
Fig. 41
Laser line
Fence (A) [65]
Fence (B) [54]
(3) Adjustment of squareness with the base surface
The laser line inclines to the right by turning the minus groove clockwise and inclines to the left by turning
counterclockwise. The squareness of the laser line with the base surface can be adjusted in this manner.
Minus groove
Gear Case [123]
Special bolt M5
Laser holder (A)
Fig. 42
Laser line
Fence (B) [54]
Laser base ass'y
Fig. 43
Turn Table [36]
Fence (A) [65]
To Next Page
