• Same as the Item 1- b .
• Repair impact marks or
scratches on Washer (D) [101]
or replace them as necessary.
• Same as the Item 1- a .
• Reduce cutting speed.
• Properly clamp workpieces with
the vise ass'y.
• During cutting, fix the Turn
Table [36] in position with the
Side Handle [37].
• Same as the Item 1- g .
• Correct warp or bend with
planer.
• Recheck the items a , b and
f .
a Large deflection of the
saw blade (It causes
rough cut surface.)
b Each surface
parallelism of washer
(D) is inaccurate due
to surface defects
such as impact marks
and scratches.
c Inaccurate
squareness between
the turn table and the
saw blade causes the
saw blade to cut at an
improper angle and
make cutting marks.
d Excessively fast
cutting speed
e Improper clamping of
workpiece
f The turn table is not
fixed with the side
handle.
g Loose fitting of
swiveling portion of
the hinge and the gear
case or sluggish
movement.
h Cutting operation
becomes sluggish
because workpiece is
warped or bent.
i Excessive vibration
2
Rough cut surface
Parallelism (A) =
0.02/43
0.38/220
(Dummy disc)
Washer (D) 0.02/43
(Fig. 51)
0.4/100
(Fig. 47)
-----
-----
-----
-----
-----
-----

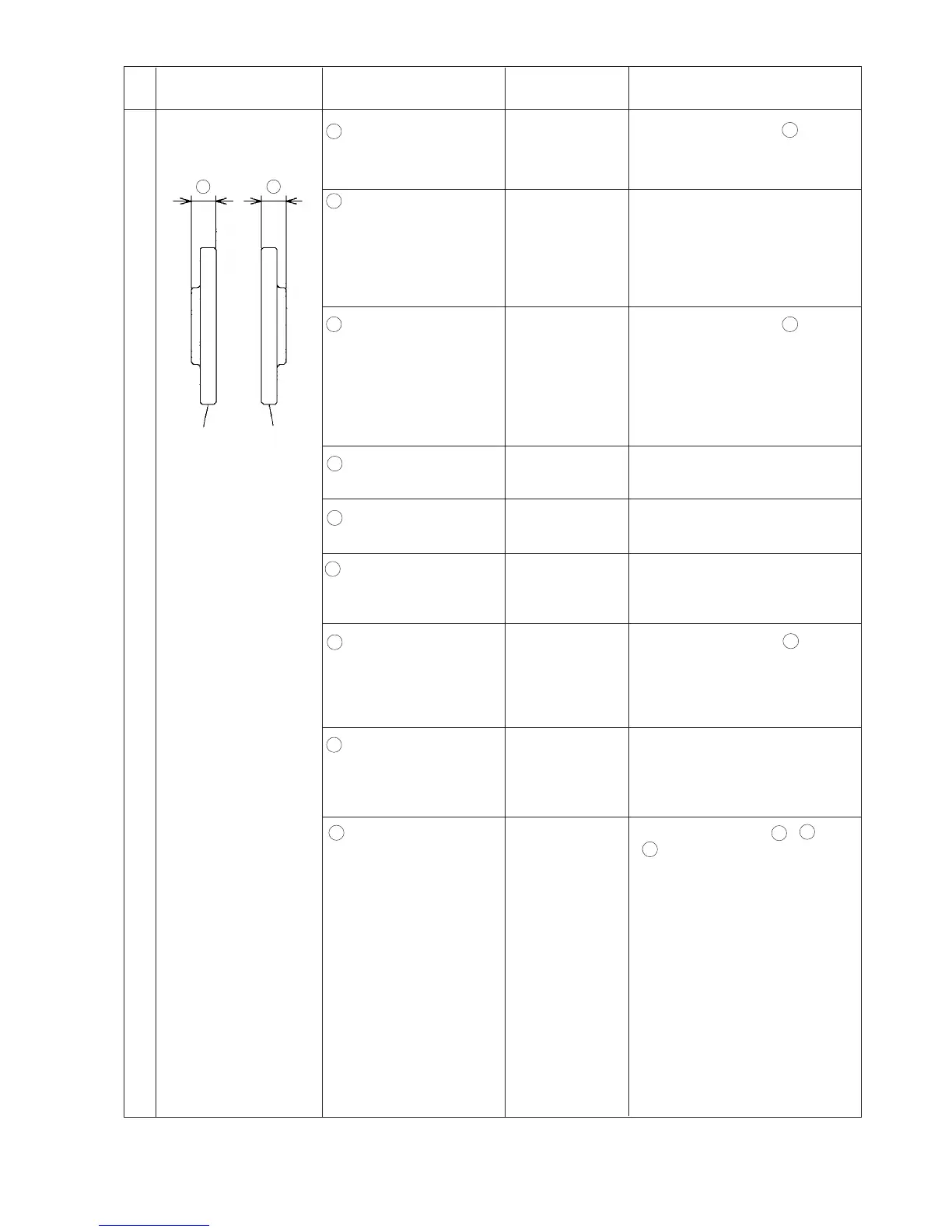

Item
Phenomenon
Cause
Factory
standard
Inspection, repair or
adjustment
Washer (D)
Washer (D)
Fig. 51
A
A
To Next Page
