a Improper wiring
b Switch (A) failure
c Switching power
supply failure
d Laser holder failure
a Switching power
supply failure
b Laser module failure
a Ink line is not right
angle.
b Laser marker accuracy
is not adjusted
properly.
c Product accuracy is
not good.
a Laser marker is
horizontally deviated
from the saw blade.
b Laser marker accuracy
is not adjusted
properly.
6 Laser marker does not
light.
(Only the Model C 10FCH2)
------
------
------
------
------
------
------
0.2/100
(Figs. 52 and 53)
------
------
• Check the wiring.
• Check the Switch (W/Cover)
[165] for conductivity.
• Replace the Switch (W/Cover)
[165].
• Check the Switching Power
Supply [157] for conductivity,
input and output referring to
"11-4. Wiring Diagram."
• Replace the Switching Power
Supply [157].
• Replace the Laser Holder [1].
• Same as item 8-(c).
• Same as item 8-(d).
• Make a correct ink line again.
• Readjust the accuracy of the
laser marker. (Refer to "11-9.
Adjustment of Laser Marker
Accuracy".)
• Readjust the accuracy of the
product and the laser marker.
• Adjust the position of the laser
line. (Refer to "8-1. Position
Adjustment of Laser Line.")
• Same as item 10-(b).
Item
Phenomenon
Cause
Factory
standard
Inspection, repair or
adjustment
8
Laser line does not
match the ink line.
(Only the Model C 10FCH2)
9
Laser line does not
match the cutting
position.
(Only the Model C 10FCH2)
7
Laser light is poor or
strong.
(Only the Model C 10FCH2)
Laser beam
Laser emitting
aperture
Squareness
0.2/100

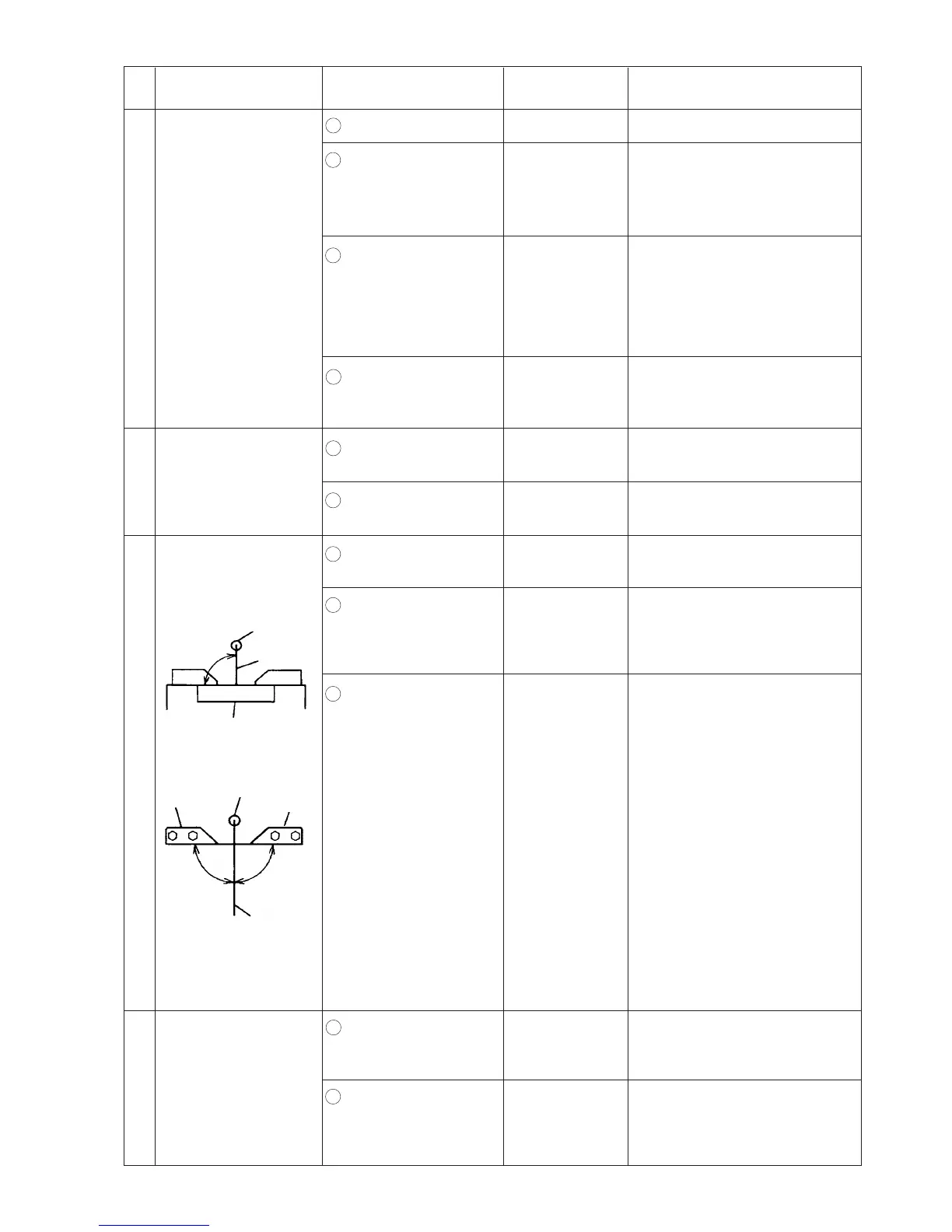

Fig. 52
Laser beam
Laser emitting
aperture
Squareness
0.2/100
Fig. 53
Squareness
0.2/100
Fence (B)
Fence (A)
