Hitachi C 10FCH2 Handling Instructions

12

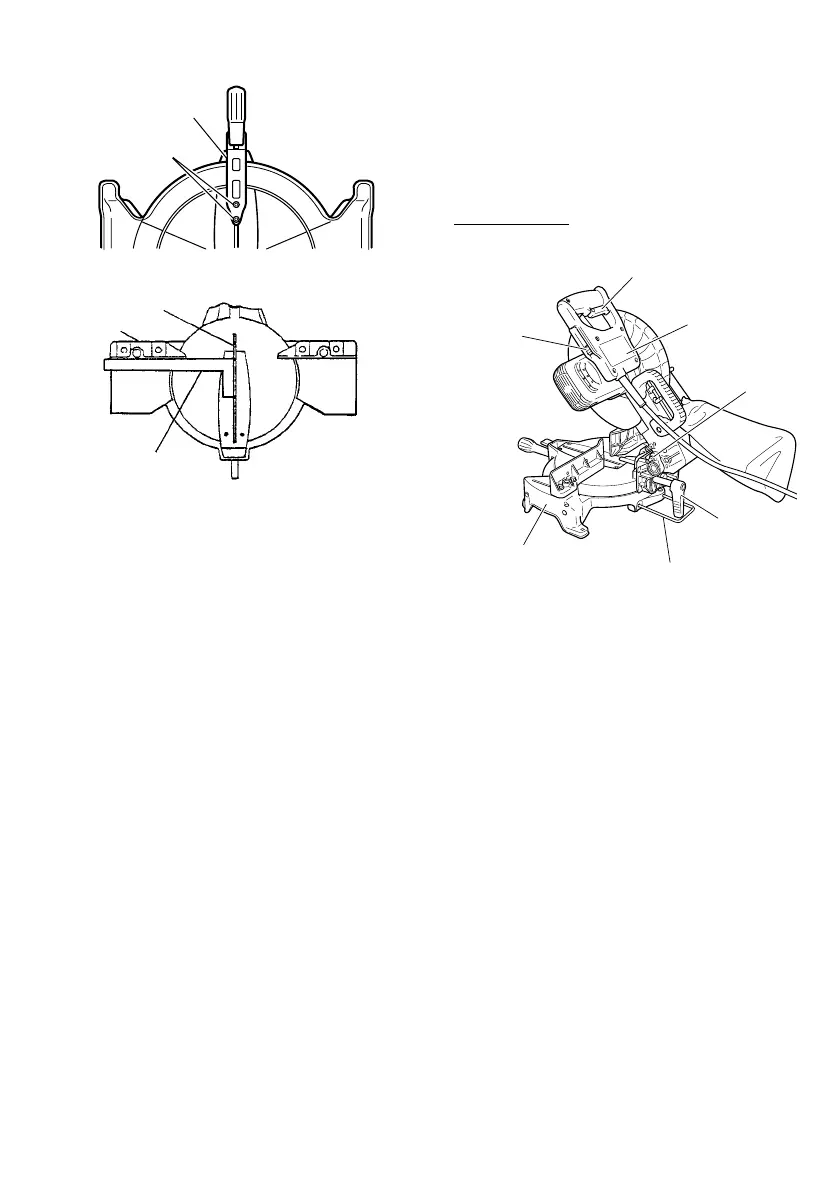

Fig. 26
Fig. 27
3. Inspecting the carbon brushes
For your continued safety and electrical shock
protection, carbon brush inspection and replacement
on this tool should ONLY be performed by a Hitachi
Authorized Service Center.
4. Replacing supply cord
If the supply cord of Tool is damaged, the Tool must
be returned to Hitachi Authorized Service Center for
the cord to be replaced.
5. About Handling the Motor (see Fig. 2)
Winding of the motor is said to be the heart of this
tool. Exercise utmost caution not to damage the
winding by exposing it to wash oil or water.
NOTE
䡬 Accumulation of dust and the like inside the motor
can result in a malfunction.
After using the motor for 50 hours or so, carry out no-
load running, and blow in the dry air from a wind hole
at the motor's rear. Such action is effective to
discharge dust and the like.
6. Inspecting the screws
Regularly inspect each component of the power tool
for looseness.
Re-tighten screws on any loose part.
WARNING
䡬 To prevent personal injury, never operate the power
tool if any components are loose.
7. Inspecting the lower guard for proper operation
Before each use of the tool, test the lower guard (see
Fig. 2) to assure that it is in good condition and that it
moves smoothly.
Never use the tool unless the lower guard operates
properly and it is in good mechanical condition.
8. Storage
After operation of the tool has been completed, check
that the following has been performed:
(1) Trigger switch is in OFF position,
Lever
Hex. Head Bolt
Saw Blade
Fence (B)
Steel Square
(2) Power plug has been removed from the receptacle,
When the tool is not in use, keep it stored in a dry
place out of the reach of children.
9. Lubrication
Lubricate the following sliding surfaces once a month
to keep the power tool in good operating condition
for a long time (Fig. 2 and Fig. 28).
Use of machine oil is recommended.
Oil supply points:
* Rotary portion of hinge
* Rotary portion of vise assembly
Fig. 28
10. Cleaning
Periodically remove chips, dust and other waste
material from the surface of the power tool, especially
from the inside of the lower guard with a damp, soapy
cloth. To avoid a malfunction of the motor, protect it
from contact with oil or water.
(Only Model C10FCH2)
If the laser line becomes invisible due to chips and the
like adhered onto the window of the laser marker's light-
emitting section, wipe and clean the window with a dry
cloth or a soft cloth moistened with soapy water, etc.
11. Service parts list
A:Item No.
B:Code No.
C:No. Used
D:Remarks
CAUTION
Repair, modification and inspection of Hitachi Power
Tools must be carried out by a Hitachi Authorized
Service Center.
Especially laser device should be maintained by the
authorized agent by laser manufacturer.
Always assign the repair of laser device to Hitachi
Authorized Service Center.
This Parts List will be helpful if presented with the
tool to the Hitachi Authorized Service Center when
requesting repair or other maintenance.
In the operation and maintenance of power tools, the
safety regulations and standards prescribed in each
country must be observed.
Trigger switch
Locking pin
Nameplate
Base
Clamp lever
Holder (B)
Switch
(for Laser marker)
(Only C10FCH2)

Hitachi C 10FCH2 Specifications

General

Input power	1520 W
Power source	AC
Blade bore	30 mm
Blade diameter	255 mm
Idle speed (max)	5000 RPM
Sound power level	95 dB
Bevel setting (left)	45 °
Miter setting (left)	52 °
Sound pressure level	108 dB
Cutting capacity 45° miter	40 x 102 mm

Weight and Dimensions

Depth	628 mm
Width	460 mm
Height	561 mm
Weight	12000 g
