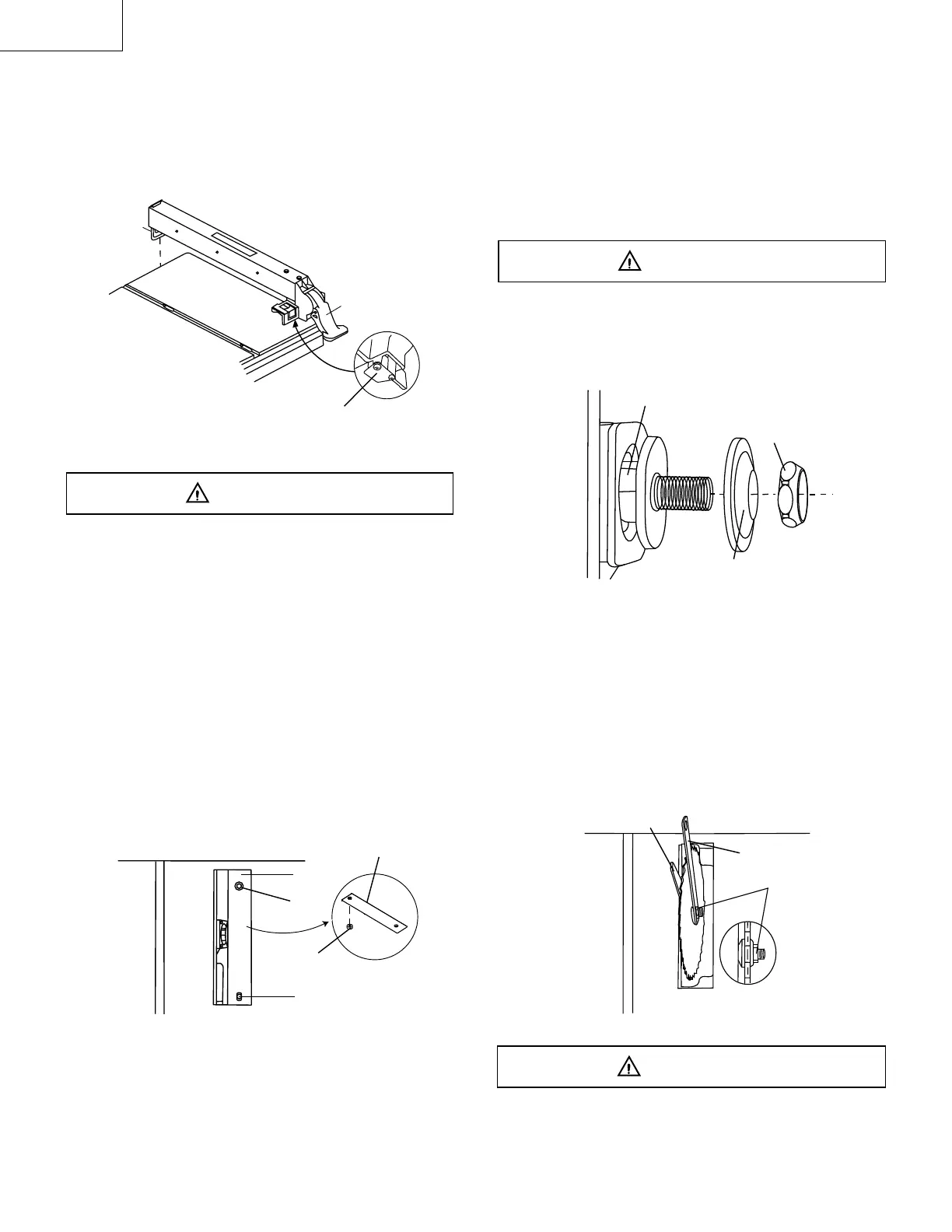

RIP FENCE (FIG. G)
1. Lift upward on the rip fence handle (1) so the rear
holding clamp (2) is fully extended.
2. Place the rip fence on the saw table, and attach the
set plate (3) under the fence handle(1) to the rail first.
3. Push down on the fence handle (1) to lock.
Fig. G
INSTALLING AND CHANGING THE BLADE (Fig. H, I,
J)
• To avoid injury from an accidental start, make
sure the switch is in the OFF position and the
plug is not connected to the power source outlet.
• To avoid serious injury, the rear of the table insert
must be level with the table. To adjust rear of
table insert, adjust the screw (3) in or out until
the rear of the insert is level to or slightly above
the table. To raise the insert, turn the screw
counterclockwise, to lower the insert, turn the
screw clockwise. NOTE: A rubber adjusting
spacer (4) is provided under rear of insert for this
purpose.
1. Remove the table insert (1) by removing the two
screws (2, 3). Be careful not to lose the rubber
adjusting spacer (4) that is on the back screw (3)
beneath the table insert (Fig. H).
Fig. H
2. Raise the blade arbor (4) (Fig. G) to the maximum
height by turning the blade raising handwheel
counterclockwise.
3. Place the open-end wrench jaws on the flats of the
saw arbor to keep the arbor from turning. (Fig. H)
and place the box-end wrench (8) on the arbor nut
(5), and turn counterclockwise.
4. Remove the arbor nut (5) and flange (6), remove
blade.
5. Install the saw blade onto the arbor with the BLADE
TEETH POINTING TOWARD THE FRONT OF THE
SAW.
6. Install the flange (6) against the blade and thread
the arbor nut (5) as far as possible by hand. Ensure
that the blade is flush against the inner side of the
blade flange.
To avoid possible injury and damage to the workpiece
be sure to install the blade with the teeth pointing toward
the front of table in the direction of the rotation arrow on
the blade guard.
Fig. I
7. To tighten the arbor nut (5) place the open-end
wrench jaws on the flats of the saw arbor to keep the
arbor from turning. (Fig. J )
8. Place the box-end wrench (8) on the arbor nut (5),
and turn clockwise (to the rear of the saw table).
9. Replace the blade insert in the table recess, insert
the screws through the front and rear holes and
tighten, remembering the rubber adjusting spacer
under the rear of the insert and leveling the rear of
the insert to the table.
Fig. J
To avoid injury from a thrown workpiece, blade parts, or
blade contact, never operate saw without the proper
insert in place. Use the saw blade insert when sawing.
Use the dado head insert when using a dado.
WARNING
WARNING
5
6
4
5
7
8
WARNING
1
3
2
1
4
1
3
2
