Hitachi C 10FR

– 26 –
English
10” (255mm) JOBSITE TABLE SAW MODEL NO. C10FR

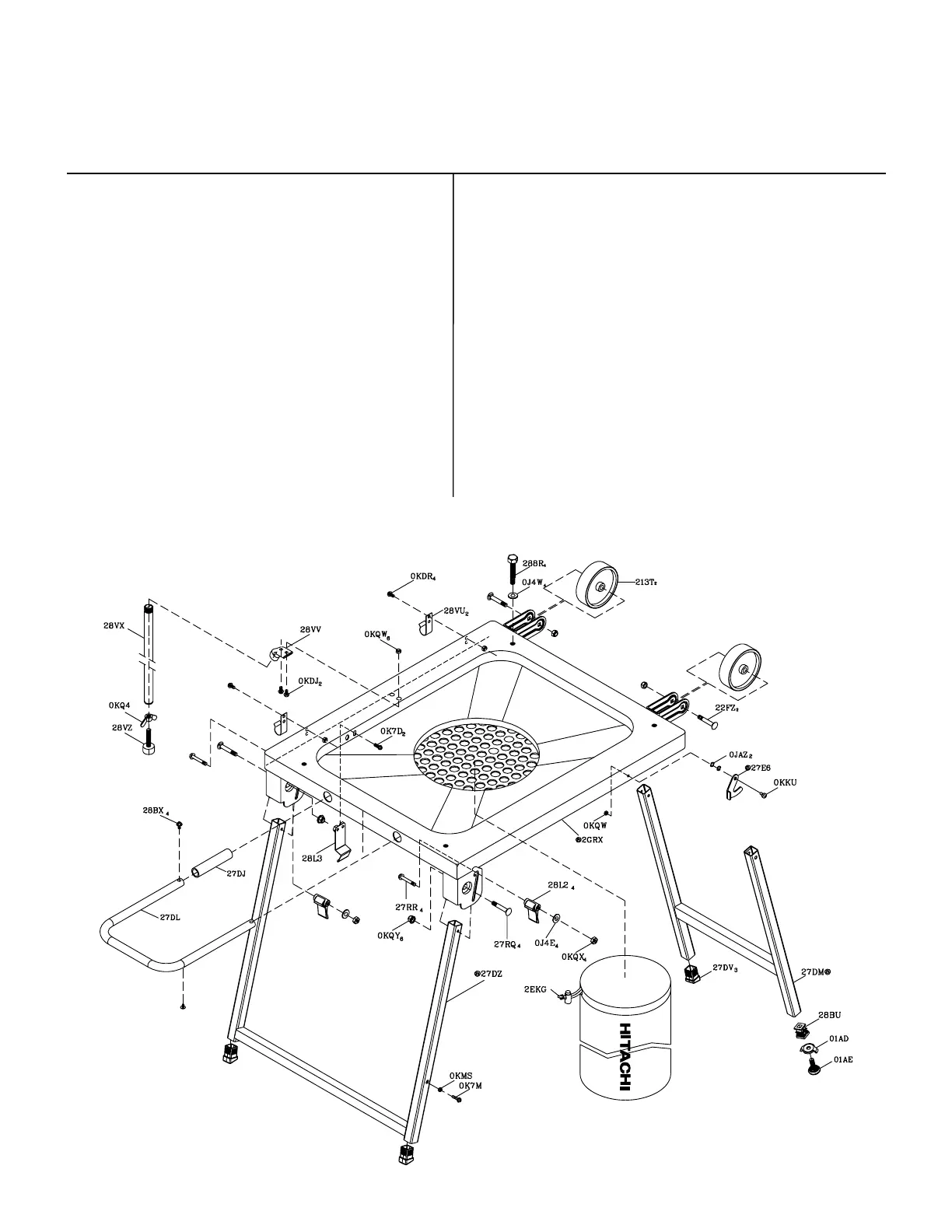

PARTS LIST FOR STAND
Parts No. I.D. Description Size QTY Parts No. I.D. Description Size QTY
726357 01AD WING NUT 1 726765 27DL HANDLE 1
726358 01AE LEVELING PAD 1 726766 27DM BRACKET ASS’Y (RIGHT) 1
726477 0J4E FLAT WASHER φ6*13-1 4 726767 27DV LEVELING PAD 3
726482 0J4W FLAT WASHER φ8.2*18-1.5 4 726770 27DZ BRACKET ASS’Y (LEFT) 1
726503 0JAZ WAVE WASHER 2 726356 27E6 HOOK 1
726554 0K7D
CR. RE. ROUND WASHER HD. SCREW
M6*1.0-10 2 726779 27RQ CAP HD. SQ.NECK BOLT M8*1.25-40 4
726559 0K7M
CR. RE. ROUND WASHER HD. SCREW
M6*1.0-18 1 726780 27RR CR. RE. TRUSS HD. SCREW M6*1.0-46 4
726580 0KDJ CR. RE. PAN HD. SCREW M5*0.8-12 2 726783 288R HEX. HD. BOLT M8*1.25-55 4
726581 0KDR CR. RE. PAN HD. SCREW M5*0.8-10 4 726784 28BU FLOOR PLATE 1
726594 0KKU
CR. RE. PAN HD. ROUND NECK SCREW
M5*08-10 1 726785 28BX
CR. RE. PAN HD PLAIN WASHER TAPPING SCREW
M5*0.8-10 4
726597 0KMS HEX. NUT M6*1.0 T=5 1 726797 28L2 CLAMP HANDLE 4
726610 0KQ4 WING NUT M8*1.25 1 726798 28L3 FOLLOWER PLATE 1
726615 0KQW LOCK NUT M5*0.8 T=5 7 726831 28VU HOOK 2
726616 0KQX NUT M6*1.0 T=6 4 726832 28VV CONNECTOR 1
726617 0KQY LOCK NUT M8*1.25 T=8 6 726833 28VX SUPPORTING TUBE ASS’Y 1
726665 213T ROLLING WHEEL 2 726834 28VZ LEVELING PAD 1
726673 22FZ CAP HD. SQ.NECK BOLT M8*1.25-45 2 326617 2GRX DUST COLLECTOR ASS’Y 1
726764 27DJ FOAM 1 726809 2EKG DUST BAG 1
