18
English
NOTE: When transporting the saw, always secure the sub fence (B) in the
collapsed position and lock it.
4. Securing the workpiece
WARNING: Always clamp or vise to secure the workpiece to the fence;
otherwise the workpiece might be thrust from the table and cause
bodily harm.
5. Slide carriage system
WARNING: To reduce the risk of injury, return slide carriage to the full rear
position after each crosscut operation.
For chop cutting operations on small workpieces, slide the
cutting head assembly completely toward the rear of the unit
and tighten the slide securing knob.
To cut wide boards up to 318 mm, the slide securing knob must
be loosened to allow the cutting head slide freely.
6. Quick-cam locking lever operation
If miter angles required are NOT one of the nine
positive stops, the miter table can be locked
at any angle between these positive stops by
using the postive stop lock button and miter lock
handle.
Unlock the miter table by lifting up the miter
lock handle, grasp the miter lock handle and
pressing down on the postive stop lock button to
move the table to the desired angle, then release
the postive stop lock button. Press down on the
miter lock handle to lock the table in position.
7. Miter detent override button (Fig. 14)
The miter detent override button allows for the table to be micro adjusted, disengaging the
positive detent stops feature. When a required miter angle is close to a positive detent stop,
this override prevents the wedge on the miter arm from slipping into that detent slot on the
base.

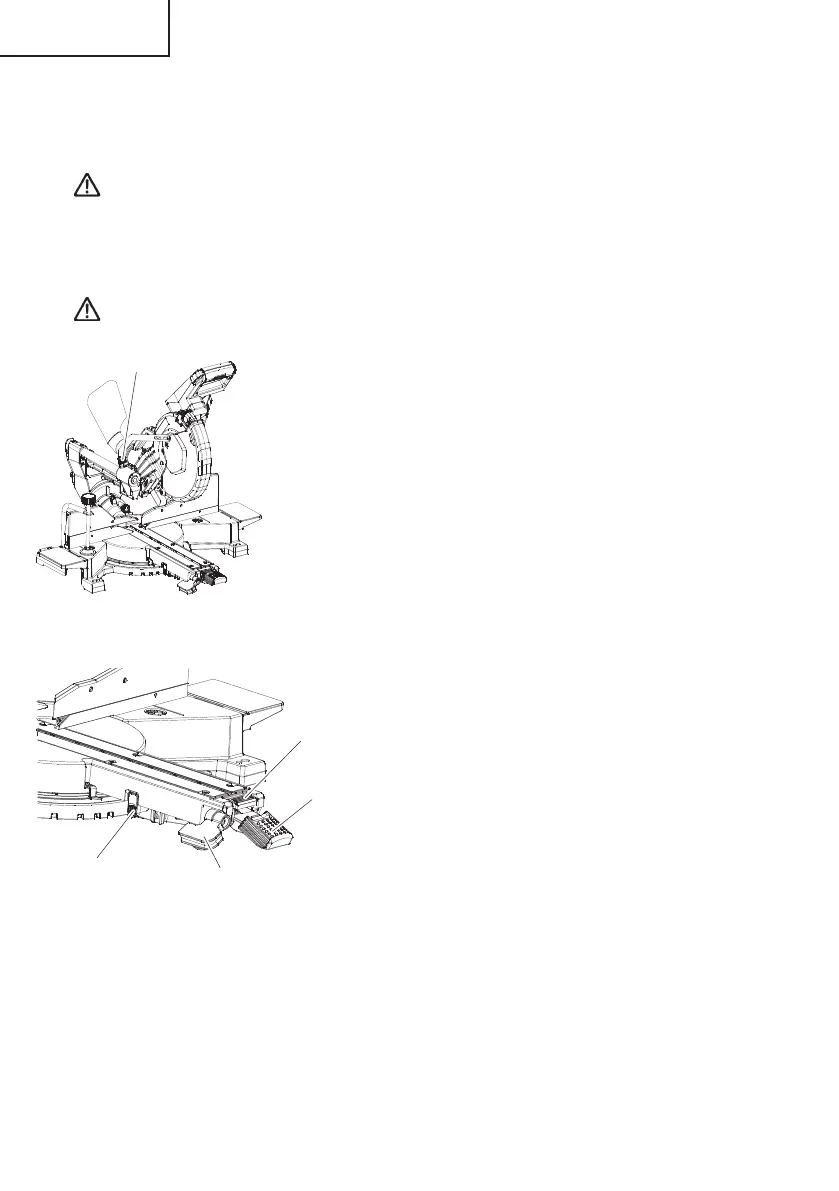

Slide securing knob
Fig. 13
Postive stop
lock button
Miter detent
override button
Bevel lock handle
Miter lock handle
Fig. 14
000BookC10FSHC(T)NA.indb18000BookC10FSHC(T)NA.indb18 2019/02/2516:33:482019/02/2516:33:48
